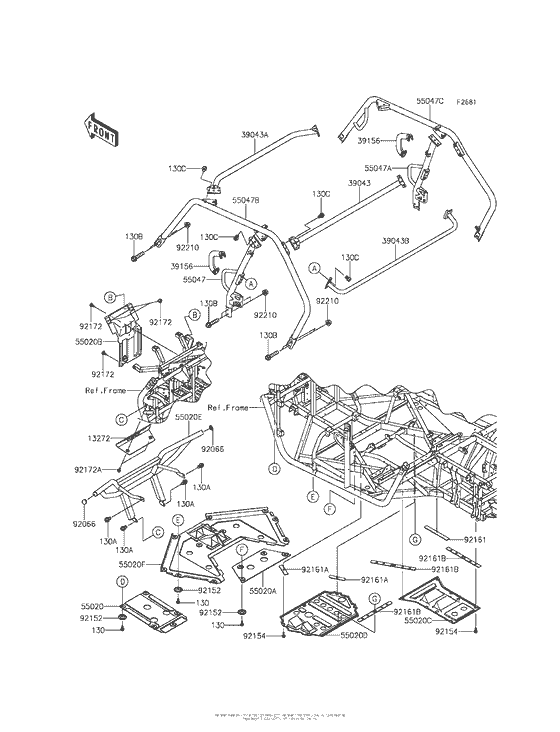

Guards/cab Frame Diagram Kawasaki KRF800 Teryx
- Model code
- KRF800BEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA0614 BOLT-FLANGED,6X14 |
130BA0614 |
from US $0.79 |
||
|
130A
|
130A
130BA1016 BOLT-FLANGED,10X16 |
130BA1016 |
from US $1.40 |
||
|
130B
|
130B
130BB1255 BOLT-FLANGED,12X55 |
130BB1255 |
from US $2.06 |
||
|
130C
|
130C
130CB1014 BOLT-FLANGED,10X14 |
130CB1014 |
from US $1.40 |
||
|
13272
|
13272
13272-1433-388 PLATE,T.BLACK |
13272-1433-388 |
from US $37.79 |
||
|
39043
|
39043
39043-0009-388 CROSSMEMBER-COMP,UPP, |
39043-0009-388 |
from US $132.21 |
||
|
39043A
|
39043A
39043-0010-388 CROSSMEMBER-COMP,UPP, |
39043-0010-388 |
from US $132.21 |
||
|
39043B
|
39043B
39043-0015-388 CROSSMEMBER-COMP,T.BL |
39043-0015-388 |
from US $173.96 |
||
|
39156
|
39156
39156-0939 PAD,SHOULDER |
39156-0939 |
from US $20.23 |
||
|
55020
|
55020
55020-0723 GUARD,SKID,FR |
55020-0723 |
from US $38.26 |
||
|
55020A
|
55020A
55020-1951 GUARD |
55020-1951 |
from US $29.87 |
||
|
55020B
|
55020B
55020-0741 GUARD,FR FRAME |
55020-0741 |
from US $31.26 |
||
|
55020C
|
55020C
55020-0812 GUARD,SKID,RR |
55020-0812 |
from US $66.20 |
||
|
55020D
|
55020D
55020-1884 GUARD,SKID,CNT |
55020-1884 |
from US $136.78 |
||
|
55020E
|
55020E
55020-0886-388 GUARD,FRONT,T.BLACK |
55020-0886-388 |
from US $316.37 |
||
|
55020F
|
55020F
55020-0890 GUARD,SKID,FR MIDDLE |
55020-0890 |
from US $159.17 |
||
|
55047
|
55047
55047-0359-388 BAR-COMP,B-PILLAR,LH, |
55047-0359-388 |
from US $95.51 |
||
|
55047A
|
55047A
55047-0360-388 BAR-COMP,B-PILLAR,RH, |
55047-0360-388 |
from US $95.51 |
||
|
55047B
|
55047B
55047-0373-388 BAR-COMP,A/C-PILLAR,L |
55047-0373-388 |
from US $263.48 |
||
|
55047C
|
55047C
55047-0372-388 BAR-COMP,A-PILLAR,RH, |
55047-0372-388 |
from US $263.48 |
||
|
92066
|
92066
92066-7503 PLUG |
92066-7503 |
US $2.28 |
||
|
92152
|
92152
92152-0784 COLLAR |
92152-0784 |
from US $0.94 |
||
|
92154
|
92154
92154-0887 BOLT,FLANGED,6X16 |
92154-0887 |
from US $0.63 |
||
|
92161
|
92161
92161-1597 DAMPER,32X270X3 |
92161-1597 |
from US $2.95 |
||
|
92161A
|
92161A
92161-1598 DAMPER,32X140X3 |
92161-1598 |
from US $2.02 |
||
| replacement | |||||
|
92161A
|
92161A
92161-2428 Damper,32X140X3 |
92161-2428 |
US $4.49 |
||
|
92161B
|
92161B
92161-1599 DAMPER,32X390X3 |
92161-1599 |
from US $3.11 |
||
|
92172
|
92172
92172-0826 SCREW,6X16 |
92172-0826 |
from US $1.24 |
||
|
92172A
|
92172A
92172-0869 SCREW,TAPPING,6X16 |
92172-0869 |
from US $0.78 |
||
|
92210
|
92210
92210-0603 NUT,12MM |
92210-0603 |
from US $4.32 |
||
