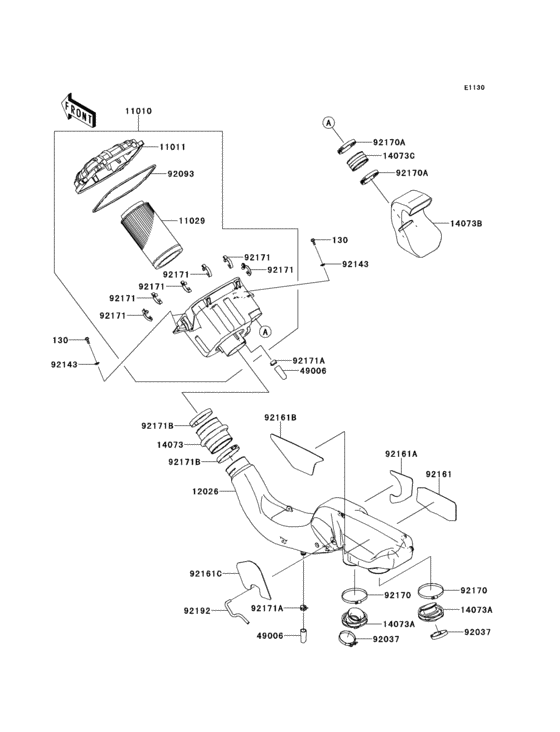

Air cleaner Diagram Kawasaki KRT800 Teryx4
- Model code
- KRT800AEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130AA0616 BOLT-FLANGED,6X16 |
130AA0616 |
from US $0.88 |
||
|
11010
|
11010
11010-0777 FILTER-ASSY-AIR |
11010-0777 |
from US $190.21 |
||
|
11011
|
11011
11011-0784 CASE-AIR FILTER |
11011-0784 |
from US $34.44 |
||
|
11029
|
11029
11029-0025 ELEMENT-ASSY-AIR FILT |
11029-0025 |
from US $49.08 |
||
|
12026
|
12026
12026-0010 CHAMBER |
12026-0010 |
US $200.07 |
||
| replacement | |||||
|
12026
|
12026
12026-0016 CHAMBER |
12026-0016 |
from US $229.70 |
||
|
14073
|
14073
14073-0757 DUCT,JOINT,A/C SIDE |
14073-0757 |
from US $14.28 |
||
|
14073B
|
14073B
14073-0767 DUCT,INTAKE |
14073-0767 |
from US $37.48 |
||
|
14073C
|
14073C
14073-1775 DUCT,AIR FILTER JOINT |
14073-1775 |
US $5.68 |
||
|
49006
|
49006
49006-1351 BOOT |
49006-1351 |
US $9.27 |
||
|
92037
|
92037
92037-1523 Clamp |
92037-1523 |
from US $8.08 |
||
|
92093
|
92093
92093-0585 SEAL |
92093-0585 |
from US $7.16 |
||
|
92143
|
92143
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92170
|
92170
92170-1676 Clamp |
92170-1676 |
US $8.68 |
||
| replacement | |||||
|
92170
|
92170
92037-1654 Clamp |
92037-1654 |
from US $9.03 |
||
|
92170A
|
92170A
92170-1764 Clamp |
92170-1764 |
from US $12.05 |
||
|
92171
|
92171
92171-0225 CLAMP |
92171-0225 |
US $2.45 |
||
|
92171A
|
92171A
92171-1277 Clamp |
92171-1277 |
from US $1.58 |
||
|
92171B
|
92171B
92171-3716 Clamp |
92171-3716 |
from US $10.52 |
||
