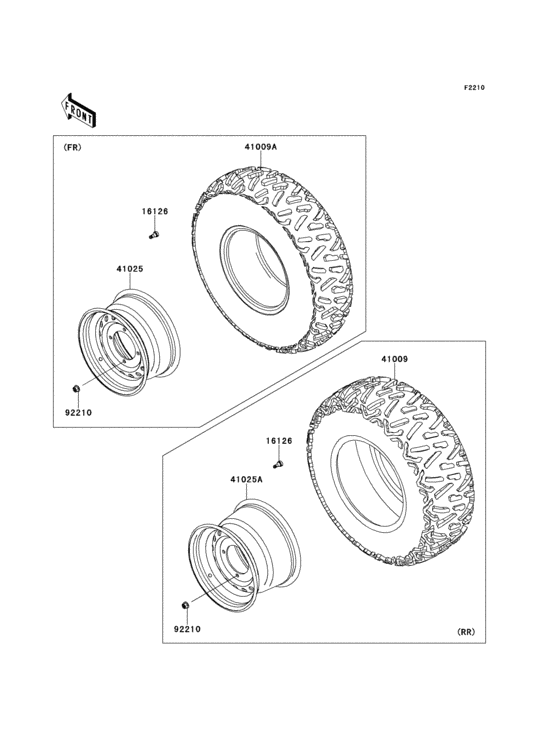

Wheels/tires Diagram Kawasaki KRT800 Teryx4
- Model code
- KRT800AEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Colored Plastic Super Black (839)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16126
|
16126
16126-4001 VALVE,TIRE |
16126-4001 |
from US $12.48 |
||
|
41025
|
41025
41025-0310-397 RIM,FR,12X6.0AT,F.S.B |
41025-0310-397 |
from US $152.69 |
||
|
41025A
|
41025A
41025-0311-397 RIM,RR,12X8.0AT,F.S.B |
41025-0311-397 |
from US $170.41 |
||
|
92210
|
92210
92210-0603 NUT,12MM |
92210-0603 |
from US $4.32 |
