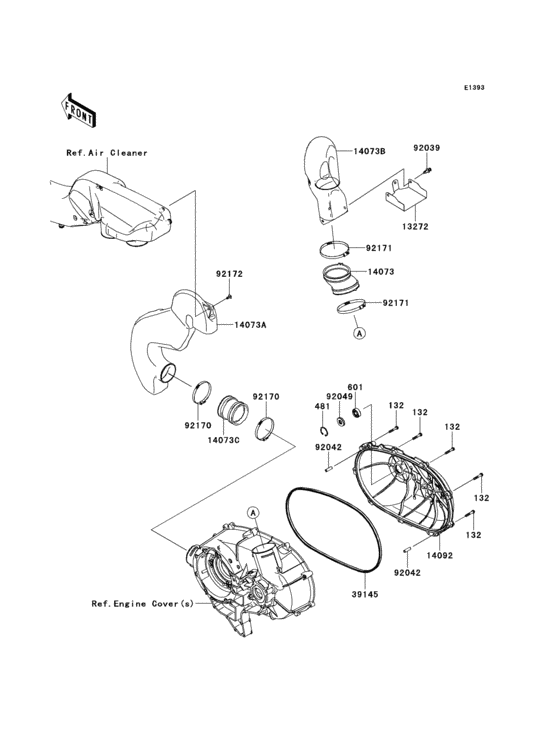

Converter cover Diagram Kawasaki KRT800 Teryx4 LE
- Model code
- KRT800CEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Kmm.candy Burnt Orange (42L)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0635 BOLT-FLANGED-SMALL,6X35 |
132BA0635 |
from US $1.25 |
||
|
481
|
481
481J3200 CIRCLIP,32MM |
481J3200 |
from US $1.43 |
||
|
601
|
601
601A6201 BEARING-BALL |
601A6201 |
from US $6.81 |
||
|
13272
|
13272
13272-1553 PLATE |
13272-1553 |
from US $15.09 |
||
|
14073
|
14073
14073-0307 DUCT,JOINT |
14073-0307 |
from US $10.56 |
||
|
14073A
|
14073A
14073-0760 DUCT,INTAKE |
14073-0760 |
from US $46.66 |
||
|
14073B
|
14073B
14073-0783 DUCT,EXHAUST |
14073-0783 |
from US $27.81 |
||
|
14073C
|
14073C
14073-1805 DUCT,JOINT ENGINE COV |
14073-1805 |
from US $11.10 |
||
|
14092
|
14092
14092-0266 COVER,CVT |
14092-0266 |
from US $103.10 |
||
| replacement | |||||
|
14092
|
14092
14093-1497 Cover,Cvt |
14093-1497 |
US $182.87 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
US $1.51 |
||
|
92042
|
92042
92042-050 PIN,DOWEL,6.2X8X28 |
92042-050 |
from US $2.85 |
||
|
92170
|
92170
92170-1763 Clamp |
92170-1763 |
from US $5.90 |
||
|
92171
|
92171
92171-1383 Clamp |
92171-1383 |
US $5.71 |
||
|
92172
|
92172
92172-0297 SCREW |
92172-0297 |
US $2.21 |
||
