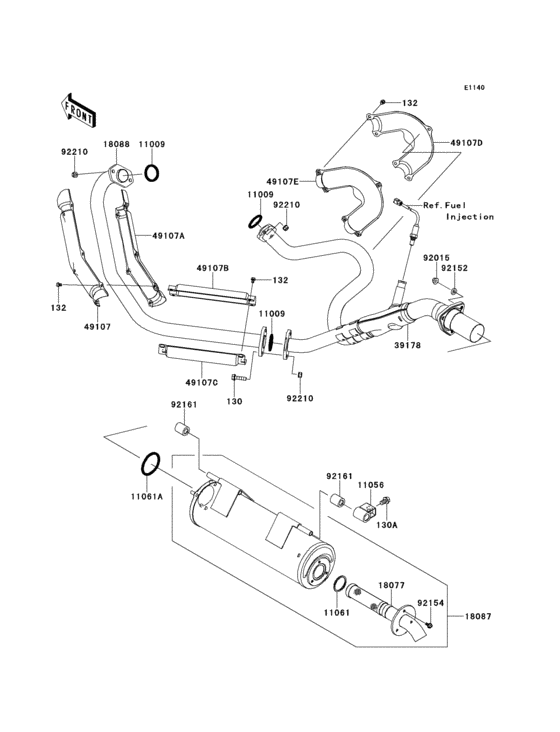

Muffler(s) Diagram Kawasaki KRT800 Teryx4 LE
- Model code
- KRT800CEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Kmm.candy Burnt Orange (42L)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 LE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BD0830 BOLT-FLANGED,8X30 |
130BD0830 |
from US $0.78 |
||
|
130A
|
130A
130CA1016 BOLT-FLANGED,10X16 |
130CA1016 |
from US $1.40 |
||
|
132
|
132
132BD0608 BOLT-FLANGED-SMALL |
132BD0608 |
from US $1.11 |
||
|
11009
|
11009
11009-1992 GASKET,EXHAUST PIPE |
11009-1992 |
from US $6.34 |
||
|
11056
|
11056
11056-0727 BRACKET |
11056-0727 |
from US $24.12 |
||
|
11061
|
11061
11061-0082 GASKET,38.9X46.4X3.0 |
11061-0082 |
from US $4.91 |
||
|
18077
|
18077
18077-0702 ARRESTER-SPARK |
18077-0702 |
US $175.03 |
||
| replacement | |||||
|
18077
|
18077
18077-0036 ARRESTER-SPARK |
18077-0036 |
from US $119.43 |
||
|
18087
|
18087
18087-0304 Muffler |
18087-0304 |
US $773.33 |
||
| replacement | |||||
|
18087
|
18087
18087-0326 MUFFLER |
18087-0326 |
from US $676.51 |
||
|
18088
|
18088
18088-0837 PIPE-EXHAUST |
18088-0837 |
from US $237.95 |
||
|
39178
|
39178
39178-0190 MANIFOLD-COMP-EXHAUST |
39178-0190 |
from US $920.68 |
||
|
49107
|
49107
49107-0753 COVER-EXHAUST PIPE,FR |
49107-0753 |
from US $14.46 |
||
|
49107A
|
49107A
49107-0754 COVER-EXHAUST PIPE,FR |
49107-0754 |
from US $19.90 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92154
|
92154
92154-0852 BOLT,FLANGED,6X12 |
92154-0852 |
from US $0.46 |
||
|
92161
|
92161
92161-0961 DAMPER |
92161-0961 |
from US $12.90 |
||
|
92210
|
92210
92210-1242 NUT,RH,THREAD 8MM |
92210-1242 |
from US $1.11 |
||
