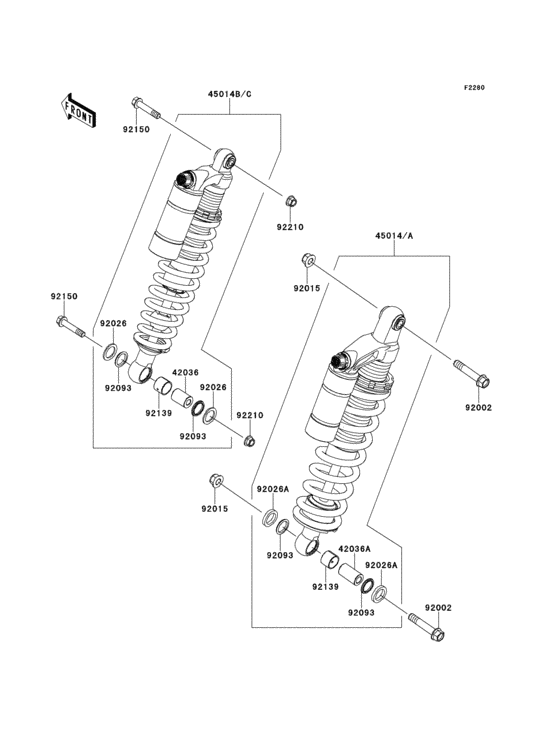

Shock absorber(s) Diagram Kawasaki KRT800 Teryx4 LE
- Model code
- KRT800CEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Kmm.candy Burnt Orange (42L)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 LE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42036
|
42036
42036-0742 SLEEVE |
42036-0742 |
from US $15.09 |
||
|
42036A
|
42036A
42036-0743 SLEEVE |
42036-0743 |
from US $15.09 |
||
|
92002
|
92002
92002-1757 BOLT,FLANGED,12X63 |
92002-1757 |
US $10.80 |
||
| replacement | |||||
|
92002
|
92002
92150-1258 BOLT,FLANGED,12X63 |
92150-1258 |
from US $8.87 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92026
|
92026
92026-0777 SPACER |
92026-0777 |
from US $2.33 |
||
|
92026A
|
92026A
92026-0778 SPACER |
92026-0778 |
from US $2.33 |
||
|
92093
|
92093
92093-0609 SEAL |
92093-0609 |
from US $2.33 |
||
|
92139
|
92139
92139-0809 BUSHING |
92139-0809 |
from US $10.57 |
||
|
92150
|
92150
92150-1125 Bolt |
92150-1125 |
from US $3.96 |
||
|
92210
|
92210
92210-1080 NUT |
92210-1080 |
from US $6.49 |
||
