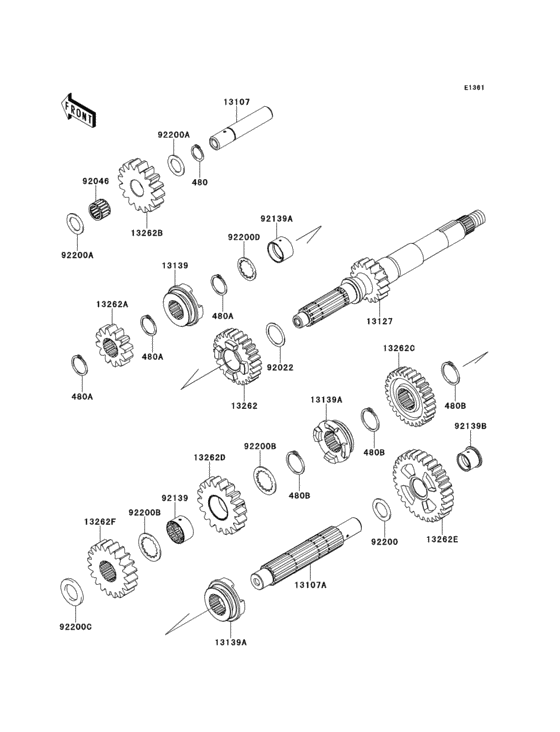

Transmission Diagram Kawasaki KRT800 Teryx4 LE
- Model code
- KRT800CEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- Canada
- Colour
- Kmm.candy Burnt Orange (42L)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 LE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J1800 CIRCLIP 18MM |
480J1800 |
from US $1.11 |
||
|
480A
|
480A
480J2400 CIRCLIP 24MM |
480J2400 |
from US $1.27 |
||
|
480B
|
480B
480J2800 CIRCLIP 28MM |
480J2800 |
from US $1.43 |
||
|
13107A
|
13107A
13107-0716 SHAFT,COUNTER |
13107-0716 |
from US $84.30 |
||
|
13127
|
13127
13127-0654 SHAFT-TRANSMISSION IN |
13127-0654 |
from US $217.73 |
||
|
13139A
|
13139A
13139-0625 SHIFTER,OUTPUT |
13139-0625 |
from US $41.67 |
||
|
13262
|
13262
13262-0860
GEAR,INPUT HI,26T
|
13262-0860 |
— | ||
| replacement | |||||
|
13262
|
13262
13262-1551 Gear,input Hi,26T |
13262-1551 |
from US $64.40 |
||
|
13262A
|
13262A
13262-0861 GEAR,INPUT REVERSE,12 |
13262-0861 |
from US $42.77 |
||
|
13262E
|
13262E
13262-0867 GEAR,OUTPUT REVERSE,3 |
13262-0867 |
from US $82.11 |
||
|
92022
|
92022
92022-1800 WASHER,25.3X32X1 |
92022-1800 |
from US $2.79 |
||
|
92200
|
92200
92200-0221 WASHER,20.2X30X1.8 |
92200-0221 |
from US $1.90 |
||
|
92200D
|
92200D
92200-1239 WASHER,INPUT TOP&5TH |
92200-1239 |
from US $5.07 |
||
