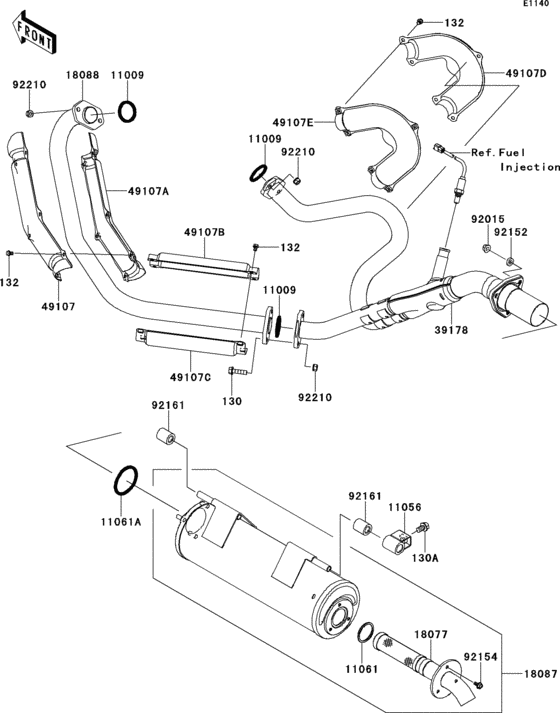

Muffler(s) Diagram Kawasaki KRT800 Teryx4 LE
- Model code
- KRT800CEF
- Engine Capacity
- 783
- Year
- 2014
- Sales region
- USA
- Frame
- JKBRTCC1 EB500001 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 LE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BD0830 BOLT-FLANGED,8X30 |
130BD0830 |
from US $0.78 |
||
|
130A
|
130A
130CA1016 BOLT-FLANGED,10X16 |
130CA1016 |
from US $1.40 |
||
|
132
|
132
132BD0608 BOLT-FLANGED-SMALL |
132BD0608 |
from US $1.11 |
||
|
11009
|
11009
11009-1992 GASKET,EXHAUST PIPE |
11009-1992 |
from US $6.34 |
||
|
11061
|
11061
11061-0082 GASKET,38.9X46.4X3.0 |
11061-0082 |
from US $4.91 |
||
|
92015
|
92015
92015-1402 NUT,8MM |
92015-1402 |
from US $2.85 |
||
|
92161
|
92161
92161-0961 DAMPER |
92161-0961 |
from US $12.90 |
||
|
92210
|
92210
92210-1242 NUT,RH,THREAD 8MM |
92210-1242 |
from US $1.11 |
