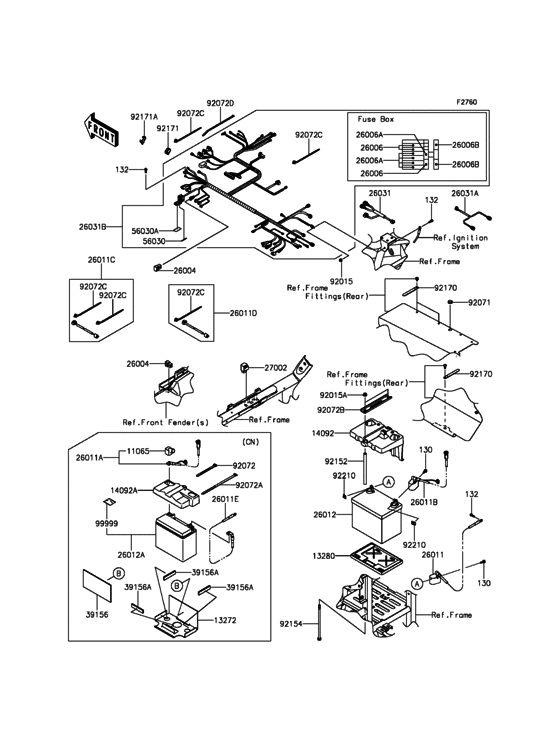

Chassis Electrical Equipment Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
13280
|
13280
13280-0709 HOLDER,BATTERY |
13280-0709 |
from US $7.93 |
||
|
14092
|
14092
14092-0753 COVER,BATTERY |
14092-0753 |
from US $6.77 |
||
| replacement | |||||
|
14092
|
14092
14093-0546 COVER,BATTERY |
14093-0546 |
from US $8.09 |
||
|
26004
|
26004
26004-1093 FUSE-ASSY,40A |
26004-1093 |
from US $3.57 |
||
| replacement | |||||
|
26004
|
26004
26004-0035 FUSE-ASSY,40A |
26004-0035 |
from US $3.46 |
||
|
26006
|
26006
26006-0001 FUSE,MINI BLADE,15A,B |
26006-0001 |
from US $3.48 |
||
|
26006A
|
26006A
26006-1078 FUSE,MINI BLADE,10A,R |
26006-1078 |
from US $3.33 |
||
|
26006B
|
26006B
26006-1080 FUSE,MINI BLADE,30A,G |
26006-1080 |
from US $3.33 |
||
|
26011
|
26011
26011-0713 WIRE-LEAD,BATTERY(-) |
26011-0713 |
from US $23.79 |
||
|
26011B
|
26011B
26011-0802 WIRE-LEAD,BATTERY(+) |
26011-0802 |
from US $40.90 |
||
|
26011C
|
26011C
26011-0842 WIRE-LEAD,HEAD LAMP,L |
26011-0842 |
from US $34.83 |
||
|
26011D
|
26011D
26011-0843 WIRE-LEAD,HEAD LAMP,R |
26011-0843 |
from US $32.04 |
||
|
26012
|
26012
26012-0107
BATTERY,12V 14AH
|
26012-0107 |
— | ||
|
26031
|
26031
26031-1264 HARNESS,SUB,TPS |
26031-1264 |
from US $28.61 |
||
|
26031A
|
26031A
26031-1439 HARNESS,SUB |
26031-1439 |
from US $95.15 |
||
|
26031B
|
26031B
26031-1441 HARNESS,MAIN |
26031-1441 |
from US $908.66 |
||
|
27002
|
27002
27002-1062 RELAY-ASSY |
27002-1062 |
from US $34.26 |
||
|
56030
|
56030
56030-0404 LABEL,FUSE BOX,30A |
56030-0404 |
from US $3.57 |
||
|
56030A
|
56030A
92015-1339 NUT,LOCK,FLANGED,6MM |
92015-1339 |
from US $1.84 |
||
|
92015A
|
92015A
92015-1406 NUT,8MM |
92015-1406 |
from US $2.85 |
||
|
92071
|
92071
92071-0733 GROMMET,10X20X6 |
92071-0733 |
from US $0.62 |
||
|
92072B
|
92072B
92072-0707 BAND |
92072-0707 |
from US $6.84 |
||
|
92072C
|
92072C
92072-1414 BAND |
92072-1414 |
from US $1.74 |
||
|
92072D
|
92072D
92072-3509 BAND |
92072-3509 |
from US $1.74 |
||
|
92152
|
92152
92152-1555 COLLAR,10.2X12.7X165. |
92152-1555 |
from US $2.65 |
||
|
92154
|
92154
92154-0889 BOLT,FLANGED,8X185 |
92154-0889 |
from US $4.82 |
||
|
92170
|
92170
92170-1925 Clamp |
92170-1925 |
from US $1.90 |
||
|
92171
|
92171
92171-0316 CLAMP,BRAKE HOSE |
92171-0316 |
from US $2.69 |
||
|
92171A
|
92171A
92171-1415 CLAMP,C CRIP,DIA=13 |
92171-1415 |
from US $1.27 |
||
|
92210
|
92210
92210-1352 NUT,PLATE,6MM |
92210-1352 |
from US $1.43 |
||
