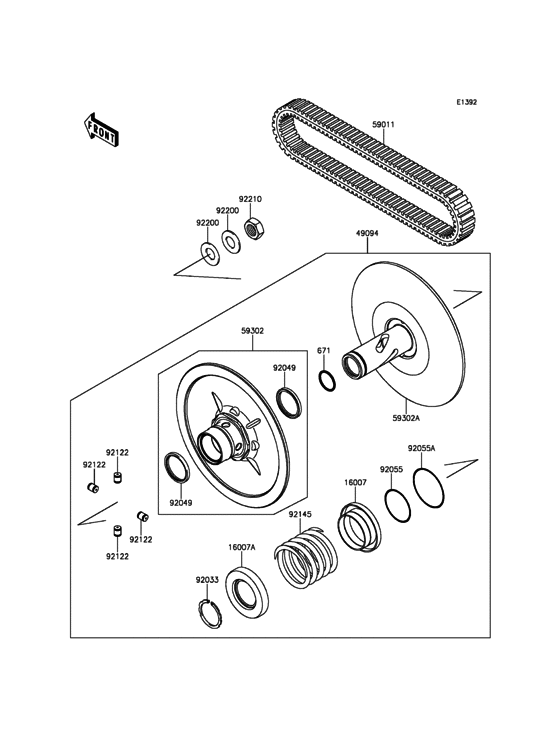

Driven Converter/Drive Belt Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
671
|
671
671D2530 O RING |
671D2530 |
from US $2.79 |
||
|
16007
|
16007
16007-0049 SEAT-SPRING,MOVABLE |
16007-0049 |
from US $9.17 |
||
|
16007A
|
16007A
16007-0050 SEAT-SPRING,FIXED |
16007-0050 |
from US $7.93 |
||
|
49094
|
49094
49094-0086 CONVERTER-ASSY-DRIVEN |
49094-0086 |
from US $475.89 |
||
|
59011
|
59011
59011-0040 BELT,CVT |
59011-0040 |
from US $159.84 |
||
|
59302
|
59302
59302-0042 SHEAVE-COMP,MOVABLE |
59302-0042 |
from US $225.50 |
||
|
59302A
|
59302A
59302-0043 SHEAVE-COMP,FIXED |
59302-0043 |
from US $225.50 |
||
|
92033
|
92033
92033-1317 RING-SNAP |
92033-1317 |
from US $2.95 |
||
|
92049
|
92049
92049-1528 SEAL-OIL |
92049-1528 |
from US $12.36 |
||
|
92055
|
92055
92055-0752 RING-O,46.4X3.1 |
92055-0752 |
from US $2.02 |
||
|
92055A
|
92055A
92055-0753 RING-O,59.5X2.4 |
92055-0753 |
from US $1.87 |
||
|
92122
|
92122
92122-0043 ROLLER |
92122-0043 |
from US $7.16 |
||
|
92145
|
92145
92145-0959 SPRING |
92145-0959 |
from US $31.42 |
||
|
92200
|
92200
92200-1505 WASHER |
92200-1505 |
from US $2.69 |
||
|
92210
|
92210
92210-0821 NUT,18MM |
92210-0821 |
from US $2.33 |
