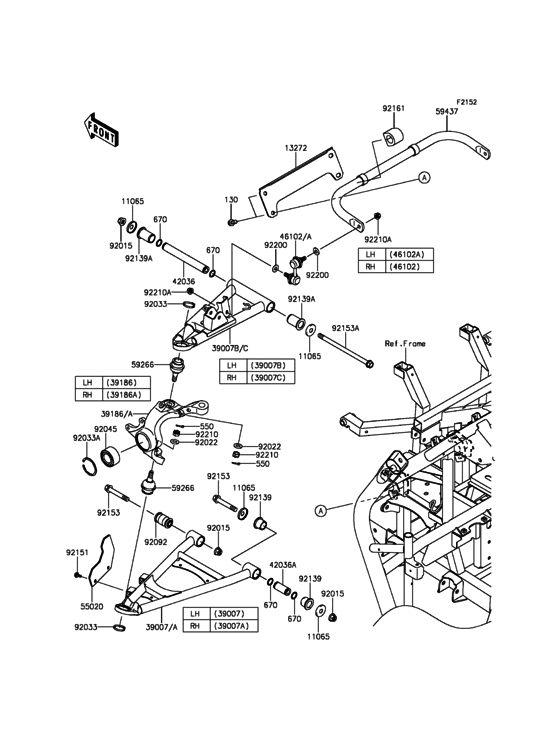

Front Suspension Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130CA1016 BOLT-FLANGED,10X16 |
130CA1016 |
from US $1.40 |
||
|
550
|
550
550AA3025 PIN-COTTER,3.0X25 |
550AA3025 |
from US $0.82 |
||
|
670
|
670
670B2018 0 RING,18MM |
670B2018 |
from US $3.20 |
||
|
11065
|
11065
11065-0253 CAP |
11065-0253 |
from US $5.08 |
||
|
13272
|
13272
13272-1650 PLATE |
13272-1650 |
from US $54.75 |
||
|
39007
|
39007
39007-0367-10 ARM-SUSP,FR,UPP,LH,BLACK |
39007-0367-10 |
from US $142.92 |
||
|
39007C
|
39007C
39007-0368-10 ARM-SUSP,FR,UPP,RH,BLACK |
39007-0368-10 |
from US $142.92 |
||
|
39186
|
39186
39186-0311 KNUCKLE,FR,LH |
39186-0311 |
from US $209.95 |
||
|
39186A
|
39186A
39186-0312 KNUCKLE,FR,RH |
39186-0312 |
from US $227.97 |
||
|
42036
|
42036
42036-0061 SLEEVE |
42036-0061 |
from US $34.99 |
||
|
42036A
|
42036A
42036-0062 SLEEVE |
42036-0062 |
from US $20.30 |
||
|
46102
|
46102
46102-0100 ROD,STABILIZER,LH |
46102-0100 |
from US $36.14 |
||
|
46102A
|
46102A
46102-0101 ROD,STABILIZER,RH |
46102-0101 |
from US $36.14 |
||
|
55020
|
55020
55020-0839 GUARD,FRONT ARM |
55020-0839 |
from US $14.46 |
||
|
59266
|
59266
59266-0014 JOINT-BALL |
59266-0014 |
from US $64.40 |
||
|
59437
|
59437
59437-0010 STABILIZER,FR |
59437-0010 |
from US $138.45 |
||
|
92015
|
92015
92015-1433 NUT,12MM |
92015-1433 |
from US $5.54 |
||
|
92022
|
92022
92022-1831 WASHER |
92022-1831 |
from US $3.17 |
||
|
92033
|
92033
92033-1262 RING-SNAP,C-TYPE,32MM |
92033-1262 |
from US $3.57 |
||
|
92033A
|
92033A
92033-1274 RING-SNAP |
92033-1274 |
from US $5.60 |
||
|
92045
|
92045
92045-0800 BEARING-BALL,30X55X32 |
92045-0800 |
from US $40.85 |
||
|
92092
|
92092
92092-0555 BUSHING-RUBBER |
92092-0555 |
from US $18.58 |
||
|
92139
|
92139
92139-0231 BUSHING |
92139-0231 |
from US $3.31 |
||
|
92139A
|
92139A
92139-0806 BUSHING,22.4X28.2X46 |
92139-0806 |
from US $5.28 |
||
|
92151
|
92151
92151-1703 BOLT,6MM |
92151-1703 |
from US $2.38 |
||
|
92153
|
92153
92153-1733 BOLT,FLANGED,12X76.5 |
92153-1733 |
from US $3.27 |
||
|
92153A
|
92153A
92153-1958 BOLT,FLANGED,12X213 |
92153-1958 |
from US $9.95 |
||
|
92161
|
92161
92161-1508 DAMPER |
92161-1508 |
from US $4.67 |
||
|
92200
|
92200
92200-2009 WASHER 10.3X23X1.6 |
92200-2009 |
from US $1.84 |
||
|
92210
|
92210
92210-0395 NUT,CASTLE,12MM |
92210-0395 |
from US $1.56 |
||
|
92210A
|
92210A
92210-1080 NUT |
92210-1080 |
from US $6.49 |
