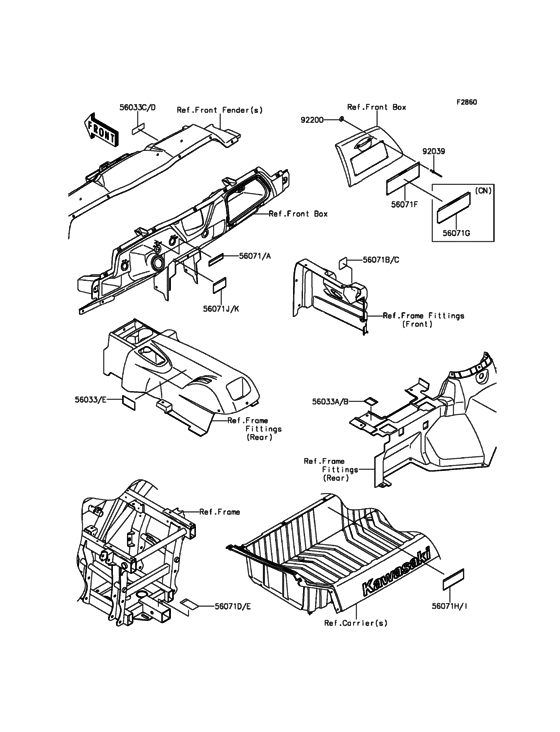

Labels Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56033A
|
56033A
56033-0372 LABEL-MANUAL,OIL MAIN |
56033-0372 |
US $5.44 |
||
|
56033C
|
56033C
56033-0724 LABEL-MANUAL,AIR CLEA |
56033-0724 |
from US $3.73 |
||
|
56033E
|
56033E
56033-0739 LABEL-MANUAL,DRIVE BE |
56033-0739 |
from US $3.73 |
||
|
56071
|
56071
56071-0128 LABEL-WARNING,SHIFT C |
56071-0128 |
US $10.90 |
||
|
56071B
|
56071B
56071-0292 LABEL-WARNING,GASOLIN |
56071-0292 |
from US $4.67 |
||
|
56071D
|
56071D
56071-0333 LABEL-WARNING,TRAILER |
56071-0333 |
from US $3.73 |
||
|
56071F
|
56071F
56071-0378 LABEL-WARNING |
56071-0378 |
from US $29.87 |
||
|
56071H
|
56071H
56071-0486 LABEL-WARNING,CARGO |
56071-0486 |
from US $15.40 |
||
|
56071J
|
56071J
56071-0506 LABEL-WARNING,TIRE IN |
56071-0506 |
from US $15.40 |
||
|
92039
|
92039
92039-3763 RIVET,3.2X8 |
92039-3763 |
from US $0.97 |
||
|
92200
|
92200
92200-1251 WASHER,3.5X8X1 |
92200-1251 |
from US $0.79 |
