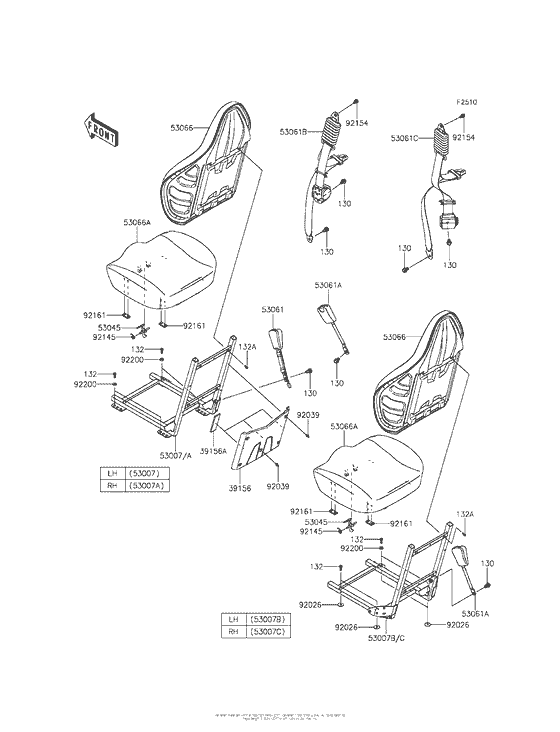

Seat Diagram Kawasaki KRT800 Teryx4 Camo
- Model code
- KRT800DFF
- Engine Capacity
- 783
- Year
- 2015
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Teryx4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130BA1220 BOLT-FLANGED,12X20 |
130BA1220 |
from US $1.56 |
||
|
132
|
132
132BA0822 BOLT-FLANGED-SMALL |
132BA0822 |
from US $1.27 |
||
|
132A
|
132A
132BB0614 BOLT-FLANGED-SMALL,6X |
132BB0614 |
from US $1.43 |
||
|
39156
|
39156
39156-0805 PAD,SEAT BACK |
39156-0805 |
from US $18.63 |
||
|
39156A
|
39156A
39156-0929 PAD,FR SEAT BACK |
39156-0929 |
from US $47.75 |
||
|
53007
|
53007
53007-0347 FRAME-SEAT,FR,LH |
53007-0347 |
from US $129.08 |
||
|
53007A
|
53007A
53007-0348 FRAME-SEAT,FR,RH |
53007-0348 |
from US $129.08 |
||
|
53007B
|
53007B
53007-0349 FRAME-SEAT,RR,LH |
53007-0349 |
from US $106.44 |
||
|
53007C
|
53007C
53007-0350 FRAME-SEAT,RR,RH |
53007-0350 |
from US $103.72 |
||
| replacement | |||||
|
53007C
|
53007C
53007-0379 FRAME-SEAT,RR,RH |
53007-0379 |
from US $129.08 |
||
|
53045
|
53045
53045-0019 HOOK-ASSY |
53045-0019 |
from US $7 |
||
|
53061
|
53061
53061-0038 BELT-SEAT,BUCKLE,SW. |
53061-0038 |
from US $62.10 |
||
|
53061A
|
53061A
53061-0039 BELT-SEAT,BUCKLE |
53061-0039 |
from US $35.17 |
||
|
53061B
|
53061B
53061-0040 BELT-SEAT,RETRACTOR,L |
53061-0040 |
from US $188.62 |
||
|
53061C
|
53061C
53061-0041 BELT-SEAT,RETRACTOR,L |
53061-0041 |
from US $188.62 |
||
|
53066
|
53066
53066-0323-MA SEAT-ASSY,BACK,BLACK |
53066-0323-MA |
from US $300.11 |
||
|
53066A
|
53066A
53066-0532-MA SEAT-ASSY,BASE,BLACK |
53066-0532-MA |
from US $275.13 |
||
|
92026
|
92026
92026-0714 SPACER,8.6X30X4.5 |
92026-0714 |
from US $4.35 |
||
|
92039
|
92039
92039-0713 RIVET,FASTENER |
92039-0713 |
from US $0.94 |
||
|
92145
|
92145
92145-0022 SPRING,SEAT LATCH |
92145-0022 |
from US $7.63 |
||
|
92154
|
92154
92154-2089 BOLT,FLANGED,10X16 |
92154-2089 |
from US $4.67 |
||
|
92161
|
92161
92161-1489 DAMPER,SEAT |
92161-1489 |
from US $1.58 |
||
|
92200
|
92200
92200-0205 WASHER,8.2X20.0X2.5 |
92200-0205 |
from US $1.40 |
||
