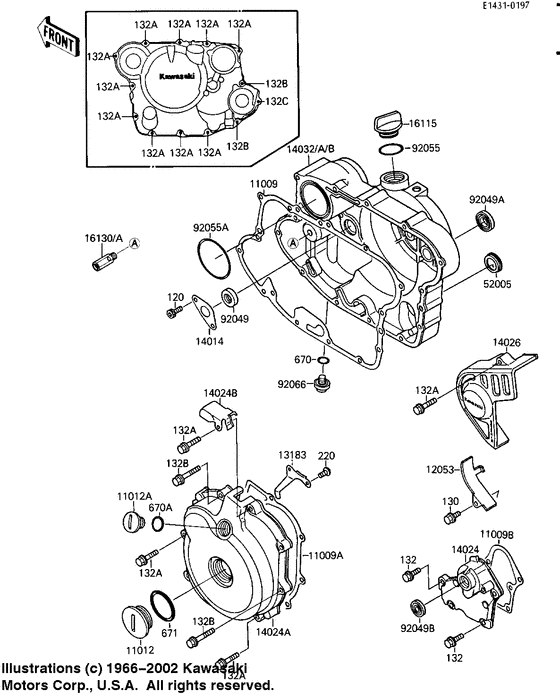

Engine covers Diagram Kawasaki KSF250 Mojave 250
- Model code
- KSF250-A2
- Engine Capacity
- 245
- Year
- 1988
- Sales region
- USA
- Power
- 20 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120P0610 BOLT-SOCKET,6X10Bolt-socket,6x10; |
120P0610 |
from US $1.43 |
||
| replacement | |||||
|
120
|
120
120CA0610 BOLT-SOCKET,6X10Bolt-socket,6x10; |
120CA0610 |
from US $1.07 |
||
|
130
|
130
130J0610
BOLT-FLANGED,6X10
|
130J0610 |
— | ||
| replacement | |||||
|
130
|
130
130BB0610 BOLT-FLANGED,6X10 |
130BB0610 |
from US $1.11 |
||
|
132
|
132
132J0620
BOLT,6X20
|
132J0620 |
— | ||
| replacement | |||||
|
132
|
132
132BB0620 BOLT,6X20 |
132BB0620 |
from US $2.38 |
||
|
132A
|
132A
132J0630
BOLT,6X30
|
132J0630 |
— | ||
| replacement | |||||
|
132A
|
132A
132BB0630 BOLT,6X30 |
132BB0630 |
from US $2.69 |
||
|
132B
|
132B
132J0640
BOLT,6X40
|
132J0640 |
— | ||
| replacements | |||||
|
132B
|
132B
132BB0640 BOLT,6X40 |
132BB0640 |
from US $3.01 |
||
|
132B
|
132B
92002-1566 BOLT,6X40 |
92002-1566 |
from US $3.01 |
||
|
132C
|
132C
132W0695 BOLT-FLANGED-SMALL |
132W0695 |
US $32.95 |
||
| replacement | |||||
|
132C
|
132C
132BB0695 BOLT-FLANGED-SMALL |
132BB0695 |
from US $1.56 |
||
|
220
|
220
220B0512
SCREW-PAN-CROS
Screw pan head 5x12; |
220B0512 |
— | ||
| replacement | |||||
|
220
|
220
220AA0512 SCREW-PAN-CROSScrew pan head 5x12; |
220AA0512 |
from US $0.78 |
||
|
670
|
670
670B2011 O RING"o" ring; |
670B2011 |
from US $1.75 |
||
|
670A
|
670A
670B2018 0 RING,18MM"0" ring,18mm; |
670B2018 |
from US $3.20 |
||
|
671
|
671
671B2540 0 RING,40MM"0" ring,40mm; |
671B2540 |
from US $3.48 |
||
|
11009
|
11009
11060-1238 GASKET,CLUTCH COVERGasket,clutch cover; |
11060-1238 |
from US $17.73 |
||
|
11009A
|
11009A
11060-1239 GASKET,GENERATORGasket,generator; |
11060-1239 |
from US $12.12 |
||
|
11009B
|
11009B
11009-1591 GASKET, REVERSEGasket,reverse; |
11009-1591 |
US $6.07 |
||
| replacement | |||||
|
11009B
|
11009B
11060-1558
GASKET, REVERSE
Gasket,reverse; |
11060-1558 |
— | ||
|
11012
|
11012
11012-1362 CAP |
11012-1362 |
from US $6.34 |
||
|
11012A
|
11012A
11012-1363 CAP,TOP MARKCap,top mark; |
11012-1363 |
from US $4.75 |
||
|
12053
|
12053
12053-1196 GUIDE-CHAIN |
12053-1196 |
from US $5.44 |
||
|
13183
|
13183
13169-1692 PLATE,GENERATOR LEADPlate,generator lead; |
13169-1692 |
from US $4.35 |
||
|
14014
|
14014
14014-1079 PLATE-POSITION |
14014-1079 |
from US $3.64 |
||
|
14024
|
14024
14024-1860 COVER,REVERSECover,reverse; |
14024-1860 |
from US $44.48 |
||
|
14024A
|
14024A
14024-1270 COVER,GENERATORCover,generator; |
14024-1270 |
from US $113.07 |
||
|
14024B
|
14024B
14024-1363 COVER |
14024-1363 |
from US $5.44 |
||
|
14026
|
14026
14026-1125 COVER-CHAIN |
14026-1125 |
US $37.87 |
||
| replacement | |||||
|
14026
|
14026
14026-1212 COVER-CHAIN |
14026-1212 |
US $52.73 |
||
|
14032A
|
14032A
14032-1251 COVER-CLUTCH |
14032-1251 |
from US $265.94 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
16130
|
16130
16130-1001
VALVE-ASSY-RELIEF
Releaf valve assy; |
16130-1001 |
— | ||
| replacements | |||||
|
16130
|
16130
16130-0002 VALVE-ASSY-RELIEFリリ-フ Releaf valve assy; |
16130-0002 |
from US $15.36 |
||
|
16130
|
16130
16130-0003 VALVE-ASSY-RELIEF,KL2Releaf valve assy; |
16130-0003 |
from US $26.60 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
92049
|
92049
92049-1191 SEAL-OIL |
92049-1191 |
US $25.91 |
||
|
92049A
|
92049A
92050-078 OIL SEALOil seal; |
92050-078 |
from US $5.54 |
||
|
92049B
|
92049B
92049-1271 SEAL-OIL |
92049-1271 |
from US $8.15 |
||
|
92055
|
92055
92055-049 O-RING,31MM"0" ring,31mm; |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-1221 RING-O,62.6X66X3.1Ring-o,62.6x66x3.1; |
92055-1221 |
from US $5.54 |
||
|
92066
|
92066
92066-1156 PLUG,DRAINPlug,drain; |
92066-1156 |
from US $9.03 |
||
