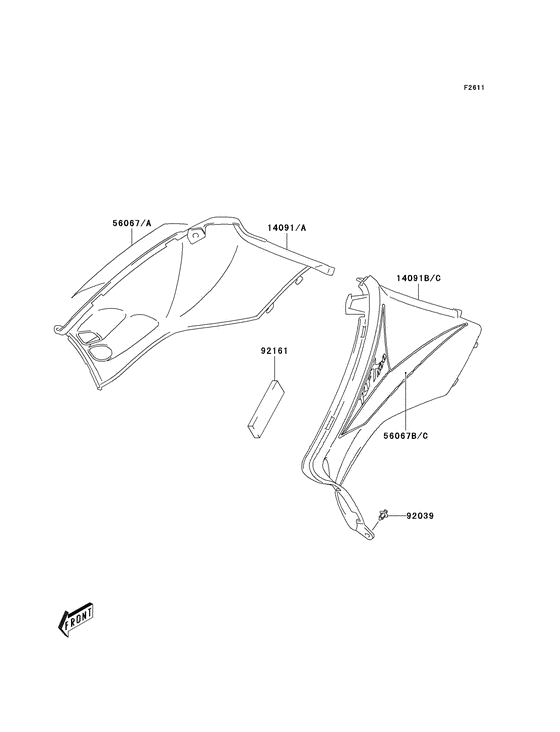

Side covers Diagram Kawasaki KSF400 KFX 400
- Model code
- KSF400A6F
- Engine Capacity
- 398
- Year
- 2006
- Sales region
- USA
- Power
- 37 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 2WD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-S180-268 COVER,SIDE,RH,B.ORANGCover,side,rh,b.orange; |
14091-S180-268 |
US $43.65 |
||
|
14091A
|
14091A
14091-S180-908
COVER,SIDE,RH,L.GREEN
Cover,side,rh,l.green; |
14091-S180-908 |
— | ||
|
14091B
|
14091B
14091-S181-268 COVER,SIDE,LH,B.ORANGCover,side,lh,b.orange; |
14091-S181-268 |
US $43.56 |
||
|
14091C
|
14091C
14091-S181-908
COVER,SIDE,LH,L.GREEN
Cover,side,lh,l.green; |
14091-S181-908 |
— | ||
|
56067
|
56067
56067-S005-904
PATTERN,RH,BLK/WHT/GR
Pattern,rh,blk/wht/grn; |
56067-S005-904 |
— | ||
|
56067A
|
56067A
56067-S005-921 PATTERN,RH,BLK/WHT/ORPattern,rh,blk/wht/org; |
56067-S005-921 |
US $49.88 |
||
|
56067B
|
56067B
56067-S006-904
PATTERN,LH,BLK/WHT/GR
Pattern,lh,blk/wht/grn; |
56067-S006-904 |
— | ||
|
56067C
|
56067C
56067-S006-921 PATTERN,LH,BLK/WHT/ORPattern,lh,blk/wht/org; |
56067-S006-921 |
US $49.05 |
||
|
92039
|
92039
92039-S010 RIVET |
92039-S010 |
US $3.94 |
||
|
92161
|
92161
92161-S211 DAMPER,SIDE COVERDamper,side cover; |
92161-S211 |
US $4.19 |
