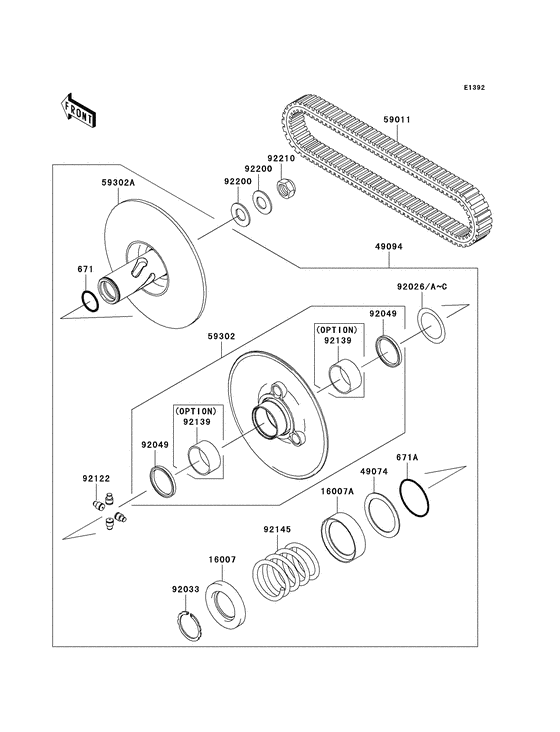

Driven converter (- vf650ae535560) Diagram Kawasaki KVF650 Prairie 650 4X4
- Model code
- KVF650-A2
- Engine Capacity
- 633
- Year
- 2003
- Sales region
- USA
- Power
- 47 hp
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Prairie 650 4X4
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
671
|
671
671D2530 O RING |
671D2530 |
from US $2.79 |
||
|
671A
|
671A
671D2550 O RING |
671D2550 |
from US $8.30 |
||
|
16007
|
16007
16007-1203 SEAT-SPRING |
16007-1203 |
from US $6.06 |
||
|
16007A
|
16007A
16007-1221 SEAT-SPRING,SHEAVE MOSeat-spring,sheave movable; |
16007-1221 |
from US $11.66 |
||
|
49074
|
49074
49074-1055 PLATE-THRUST |
49074-1055 |
from US $21.93 |
||
|
49094
|
49094
49094-1094 Converter-assy-driven |
49094-1094 |
US $628.69 |
||
| replacement | |||||
|
49094
|
49094
49094-0068 CONVERTER-ASSY-DRIVEN |
49094-0068 |
US $898.74 |
||
|
59011
|
59011
59011-1080 BELT |
59011-1080 |
US $120.26 |
||
| replacement | |||||
|
59011
|
59011
59011-0003 BELT |
59011-0003 |
from US $158.22 |
||
|
59302
|
59302
59302-1096 SHEAVE-COMPSheave-comp,movable; |
59302-1096 |
US $281.34 |
||
| replacements | |||||
|
59302
|
59302
59302-0039 SHEAVE-COMP,MOVABLESheave-comp,movable; |
59302-0039 |
from US $225.50 |
||
|
59302
|
59302
59302-0077 SHEAVE-COMP,FIXEDSheave-comp,movable; |
59302-0077 |
from US $225.50 |
||
|
59302
|
59302
59302-1099 SHEAVE-COMPSheave-comp,movable; |
59302-1099 |
US $281.34 |
||
|
59302A
|
59302A
59302-1097 SHEAVE-COMPSheave-comp,fixed; |
59302-1097 |
US $295.40 |
||
| replacements | |||||
|
59302A
|
59302A
59302-0039 SHEAVE-COMP,MOVABLESheave-comp,fixed; |
59302-0039 |
from US $225.50 |
||
|
59302A
|
59302A
59302-0077 SHEAVE-COMP,FIXEDSheave-comp,fixed; |
59302-0077 |
from US $225.50 |
||
|
92026
|
92026
92026-1565 SPACER,T=1.00Spacer,t=1.00; |
92026-1565 |
from US $6.55 |
||
|
92026A
|
92026A
92026-1569 SPACER,T=0.60Spacer,t=0.60; |
92026-1569 |
from US $6.55 |
||
|
92026B
|
92026B
92026-1570 SPACER, T=1.40Spacer,t=1.40; |
92026-1570 |
from US $6.55 |
||
|
92026C
|
92026C
92026-1617 SPACER,T=0.8Spacer,t=0.8; |
92026-1617 |
from US $6.55 |
||
|
92033
|
92033
92033-1317 RING-SNAP |
92033-1317 |
from US $2.95 |
||
|
92049
|
92049
92049-1528 SEAL-OIL |
92049-1528 |
from US $12.36 |
||
|
92122
|
92122
92122-1209 ROLLER |
92122-1209 |
from US $9.40 |
||
|
92139
|
92139
92139-1078 BUSHING(option) |
92139-1078 |
from US $10.11 |
||
|
92145
|
92145
92145-1462 SPRING,YELLOWSpring,yellow; |
92145-1462 |
from US $24.91 |
||
|
92200
|
92200
92200-1505 WASHER |
92200-1505 |
from US $2.69 |
||
|
92210
|
92210
92210-1367 NUT,18Nut,18; |
92210-1367 |
from US $9.76 |
||
