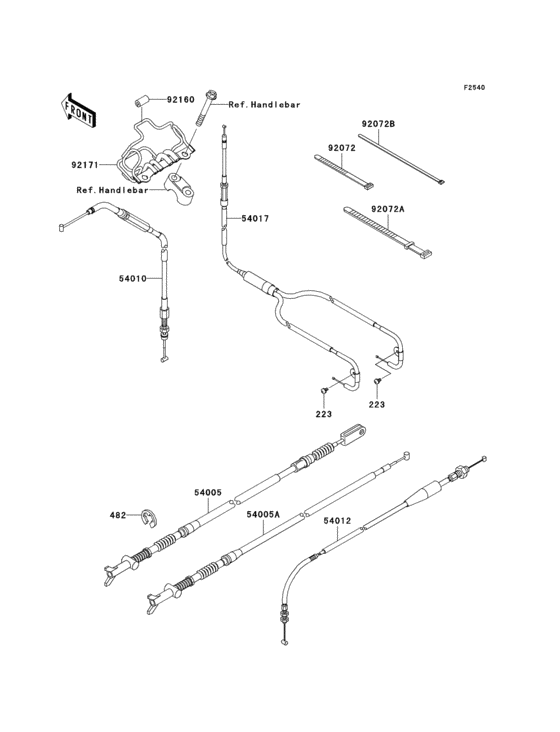

Cables Diagram Kawasaki KVF650 Brute Force 650 4X4 Hardwood Green HD
- Model code
- KVF650-E1
- Engine Capacity
- 633
- Year
- 2005
- Sales region
- Australia
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223D0408
SCREW-PAN-WS-CROS,4X8
|
223D0408 |
— | ||
| replacement | |||||
|
223
|
223
223AA0408 SCREW-PAN-WS-CROS,4X8 |
223AA0408 |
from US $0.63 |
||
|
482
|
482
482L8000
CIRCLIP-TYPE-E
|
482L8000 |
— | ||
| replacement | |||||
|
482
|
482
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $1.05 |
||
|
54005
|
54005
54005-0011 CABLE-BRAKE,REAR |
54005-0011 |
US $54.43 |
||
| replacement | |||||
|
54005
|
54005
54005-0019 CABLE-BRAKE,REAR |
54005-0019 |
US $31.47 |
||
|
54005A
|
54005A
54005-0012 CABLE-BRAKE,PARKING |
54005-0012 |
US $54.43 |
||
| replacement | |||||
|
54005A
|
54005A
54005-0020 CABLE-BRAKE,PARKING |
54005-0020 |
US $31.47 |
||
|
54010
|
54010
54010-0025
CABLE,FRONT DIFF LOCK
|
54010-0025 |
— | ||
|
54012
|
54012
54012-0124 CABLE-THROTTLE |
54012-0124 |
from US $36.59 |
||
|
54017
|
54017
54017-0020 CABLE-STARTER |
54017-0020 |
from US $70.58 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-056 BAND,WIRING HARNESS |
92072-056 |
from US $3.17 |
||
|
92072B
|
92072B
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92160
|
92160
92160-1074 DAMPER,4.5X11X20 |
92160-1074 |
from US $5.07 |
||
|
92171
|
92171
92171-0378 CLAMP,BREATHER TUBE |
92171-0378 |
from US $46.04 |
||
