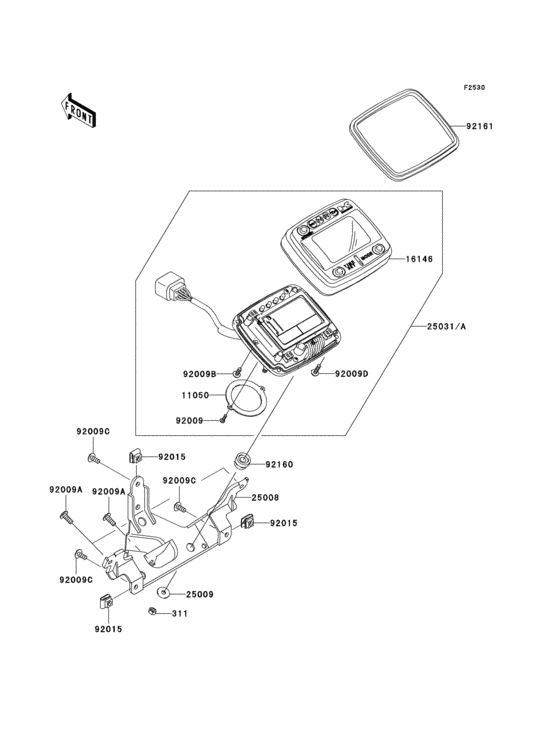

Meter(s) Diagram Kawasaki KVF650 Brute Force 650 4X4 Hardwood Green HD
- Model code
- KVF650-E1
- Engine Capacity
- 633
- Year
- 2005
- Sales region
- Australia
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311C0500 NUT-HEX |
311C0500 |
from US $0.61 |
||
| replacement | |||||
|
311
|
311
311AB0500 NUT-HEX |
311AB0500 |
from US $0.75 |
||
|
11050
|
11050
11050-1932 BRACKET,METER |
11050-1932 |
from US $6.22 |
||
|
16146
|
16146
16146-0011 COVER-ASSY,UPPER |
16146-0011 |
from US $34.06 |
||
|
25008
|
25008
25008-0003 BRACKET-METER |
25008-0003 |
US $6.32 |
||
| replacement | |||||
|
25008
|
25008
25008-0034 BRACKET-METER |
25008-0034 |
from US $7.62 |
||
|
25009
|
25009
25009-004
WASHER,5.2X16X16X1.2T
|
25009-004 |
— | ||
| replacement | |||||
|
25009
|
25009
92200-2276
Washer,5.2X16X1.2
|
92200-2276 |
— | ||
|
25031A
|
25031A
25031-0057 METER-ASSY,KPH |
25031-0057 |
from US $853.80 |
||
|
92009
|
92009
92009-1028
SCREW,TAPPING,3X12,BL
|
92009-1028 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1326 SCREW,3X12 |
92009-1326 |
from US $2.53 |
||
|
92009A
|
92009A
92009-1197 SCREW |
92009-1197 |
from US $2.53 |
||
|
92009B
|
92009B
92009-1254 SCREW,TAPPING,4X12 |
92009-1254 |
from US $2.65 |
||
|
92009C
|
92009C
92009-1652 SCREW |
92009-1652 |
from US $2.53 |
||
|
92009D
|
92009D
92009-1663
SCREW,6X18
|
92009-1663 |
— | ||
| replacement | |||||
|
92009D
|
92009D
92009-3805 SCREW,6X18 |
92009-3805 |
from US $2.69 |
||
|
92015
|
92015
92015-1573 NUT,5MM |
92015-1573 |
from US $3.80 |
||
|
92160
|
92160
92160-1460 DAMPER |
92160-1460 |
from US $2.79 |
||
|
92161
|
92161
92161-1114 DAMPER,METER,UPP |
92161-1114 |
US $5.41 |
||
