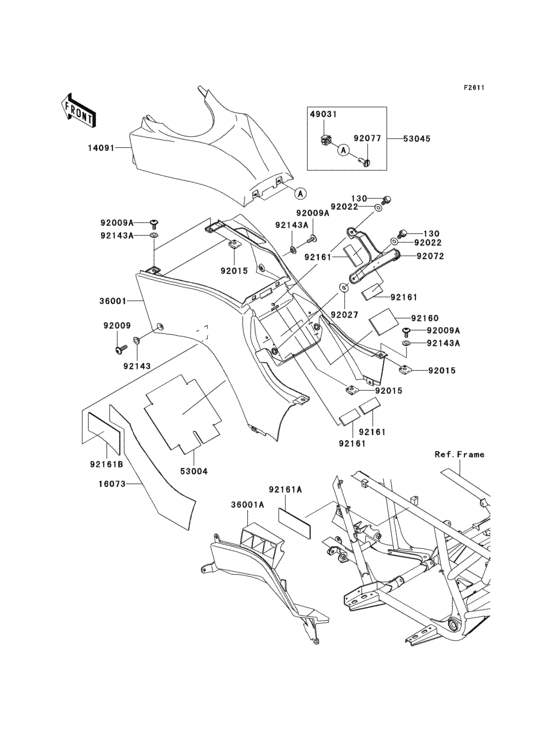

Side covers Diagram Kawasaki KVF650 Brute Force 650 4X4 Hardwood Green HD
- Model code
- KVF650-E1
- Engine Capacity
- 633
- Year
- 2005
- Sales region
- Australia
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130J0618 BOLT-FLANGED,6X18 |
130J0618 |
from US $1.19 |
||
| replacement | |||||
|
130
|
130
130BB0618 BOLT-FLANGED,6X18 |
130BB0618 |
from US $1.11 |
||
|
14091
|
14091
14091-0403-826
COVER,AIR CLEANER,C.H
|
14091-0403-826 |
— | ||
|
16073
|
16073
16073-0019 INSULATOR,SIDE COVER |
16073-0019 |
US $34.69 |
||
| replacements | |||||
|
16073
|
16073
16073-0041 INSULATOR,SIDE COVER |
16073-0041 |
US $34.69 |
||
|
16073
|
16073
16073-0930 Insulator,Side Cover |
16073-0930 |
US $45.12 |
||
|
36001
|
36001
36001-0066-826 COVER-SIDE,C.H.GREEN |
36001-0066-826 |
US $150.98 |
||
|
36001A
|
36001A
36001-1647 COVER-SIDE |
36001-1647 |
US $24.75 |
||
|
49031
|
49031
49031-0001 LATCH |
49031-0001 |
US $6.55 |
||
| replacement | |||||
|
49031
|
49031
49031-0002 LATCH |
49031-0002 |
from US $4.67 |
||
|
53004
|
53004
53004-1172 MAT,BATTERY CASE |
53004-1172 |
from US $21.93 |
||
|
53045
|
53045
53045-0007 HOOK-ASSY |
53045-0007 |
US $9.86 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.74 |
||
|
92009A
|
92009A
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009A
|
92009A
92009-1694 SCREW |
92009-1694 |
from US $5 |
||
|
92015
|
92015
92015-1678 NUT |
92015-1678 |
from US $3.17 |
||
|
92022
|
92022
92022-1093 WASHER,6.5X16X1.0 |
92022-1093 |
from US $1.43 |
||
|
92027
|
92027
92027-1964 COLLAR,L=4.7 |
92027-1964 |
from US $3.73 |
||
|
92072
|
92072
92072-1406 BAND,BATTERY |
92072-1406 |
US $9.03 |
||
|
92077
|
92077
92077-0002 KNOB |
92077-0002 |
US $3.98 |
||
| replacement | |||||
|
92077
|
92077
92077-0023 KNOB |
92077-0023 |
from US $2.65 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92160
|
92160
92160-1897 DAMPER,BATTERY |
92160-1897 |
from US $4.12 |
||
|
92161
|
92161
92161-1127 DAMPER,BATTERY |
92161-1127 |
from US $3.96 |
||
|
92161A
|
92161A
92161-1201 DAMPER,SIDE COVER |
92161-1201 |
from US $5.44 |
||
|
92161B
|
92161B
92161-1202 DAMPER,FUEL TANK COVE |
92161-1202 |
from US $8.09 |
||
