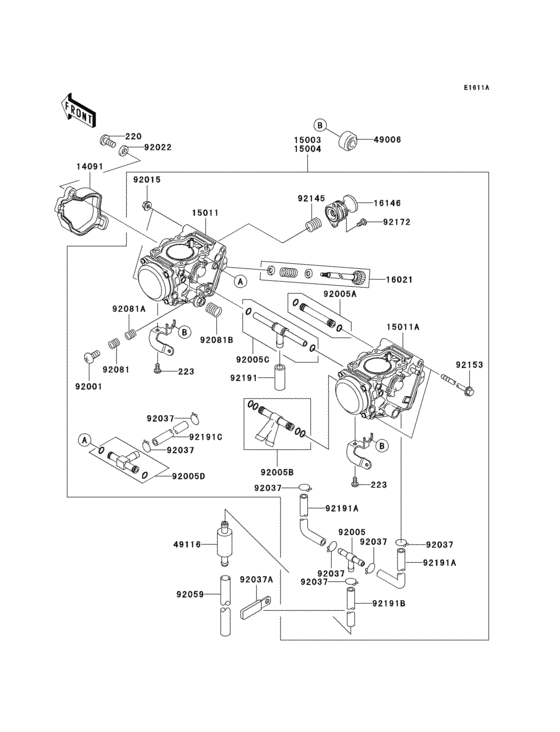

Carburetor(1/2)(e6f/e7f)(cn) Diagram Kawasaki KVF650 Brute Force 650 4X4 Hardwood Green HD
- Model code
- KVF650E6F
- Engine Capacity
- 633
- Year
- 2006
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220AA0408 SCREW-PAN-CROS |
220AA0408 |
from US $0.79 |
||
|
223
|
223
223AA0408 SCREW-PAN-WS-CROS,4X8 |
223AA0408 |
from US $0.63 |
||
|
14091
|
14091
14091-1196 COVER,THROTTLE CABLE |
14091-1196 |
from US $6.06 |
||
|
15003
|
15003
15003-0071 CARBURETOR-ASSY |
15003-0071 |
from US $1,514.76 |
||
|
15011
|
15011
15011-0094 CARBURETOR,FR |
15011-0094 |
US $806.74 |
||
|
15011A
|
15011A
15011-0095 CARBURETOR,RR |
15011-0095 |
US $806.74 |
||
|
16021
|
16021
16021-1238 SCREW-THROTTLE STOP |
16021-1238 |
from US $73.44 |
||
|
16146
|
16146
16146-1225 COVER-ASSY,PRIMING |
16146-1225 |
from US $32.04 |
||
|
49006
|
49006
49006-1353 BOOT,STARTER CABLE |
49006-1353 |
from US $2.02 |
||
|
49116
|
49116
49116-1126 VALVE-ASSY |
49116-1126 |
from US $19.44 |
||
|
92001
|
92001
92001-1998 BOLT,THROTTLE ADJUST |
92001-1998 |
from US $10.30 |
||
|
92005
|
92005
92005-1112 FITTING,FUEL,T-TYPE |
92005-1112 |
from US $9.03 |
||
|
92005A
|
92005A
92005-1375 FITTING |
92005-1375 |
from US $16.47 |
||
|
92005B
|
92005B
92005-1376 FITTING |
92005-1376 |
from US $16.47 |
||
|
92005C
|
92005C
92005-1385 FITTING |
92005-1385 |
from US $22.71 |
||
|
92005D
|
92005D
92005-1393 FITTING |
92005-1393 |
from US $5.44 |
||
|
92015
|
92015
92015-1259 NUT,FLANGED,5MM |
92015-1259 |
from US $2.53 |
||
|
92022
|
92022
92022-1380 WASHER,5.2X13X1 |
92022-1380 |
from US $2.69 |
||
|
92037
|
92037
92037-1201 CLAMP |
92037-1201 |
from US $3.48 |
||
|
92037A
|
92037A
92037-1539 CLAMP,WIRING HARNESS |
92037-1539 |
from US $3.17 |
||
|
92059
|
92059
92059-1736 TUBE,7X10X100 |
92059-1736 |
from US $2.79 |
||
|
92081
|
92081
92081-1620 SPRING,THROTTLE ADJUS |
92081-1620 |
from US $3.17 |
||
|
92081A
|
92081A
92081-1621 SPRING,THROTTLE ADJUS |
92081-1621 |
from US $3.64 |
||
|
92081B
|
92081B
92081-1622 SPRING,THROTTLE ADJUS |
92081-1622 |
from US $7.60 |
||
|
92145
|
92145
92145-1451 SPRING,PRIMING |
92145-1451 |
from US $4.51 |
||
|
92153
|
92153
92153-1068 BOLT,5X143 |
92153-1068 |
from US $3.89 |
||
|
92172
|
92172
92172-0230 SCREW |
92172-0230 |
from US $2.79 |
||
|
92191
|
92191
92191-1672 TUBE,7X11X25 |
92191-1672 |
from US $2.33 |
||
|
92191A
|
92191A
92191-1673 TUBE,4.5X8X65 |
92191-1673 |
from US $2.79 |
||
|
92191B
|
92191B
92191-1674 TUBE,4.5X8X420 |
92191-1674 |
from US $6.38 |
||
|
92191C
|
92191C
92191-1676 TUBE,4.5X8.5X35 |
92191-1676 |
from US $2.33 |
