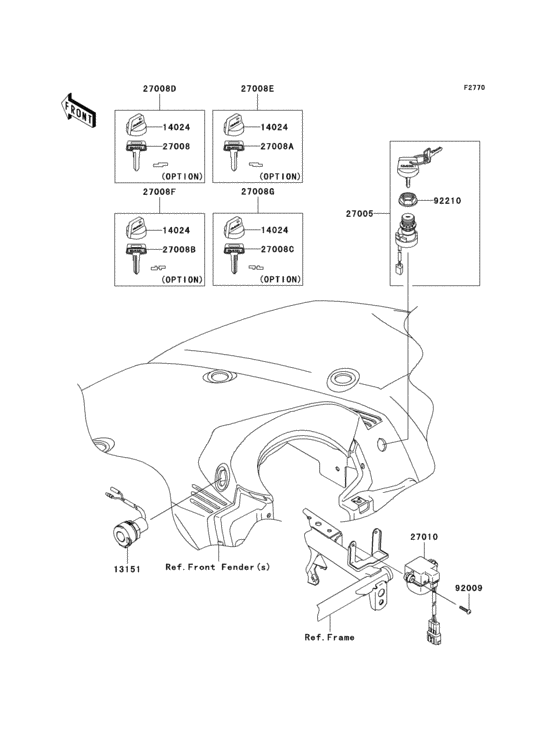

Ignition switch Diagram Kawasaki KVF650 Brute Force 650 4X4 Hardwood Green HD
- Model code
- KVF650E7F
- Engine Capacity
- 633
- Year
- 2007
- Sales region
- Canada
- Colour
- Camouflage Hardwoods Green Hd(Base Black) (826)
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4 Camo
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13151
|
13151
13151-0003 SWITCH-COMP,D.C.TERMI |
13151-0003 |
from US $95.80 |
||
|
14024
|
14024
14024-1551 COVER,KEY |
14024-1551 |
from US $7.96 |
||
|
27005
|
27005
27005-1267 SWITCH-ASSY-IGNITION |
27005-1267 |
from US $112.59 |
||
|
27008
|
27008
27008-1041 KEY-LOCK,BLANK |
27008-1041 |
from US $12.83 |
||
|
27008A
|
27008A
27008-1042 KEY-LOCK,BLANK |
27008-1042 |
from US $12.83 |
||
|
27008B
|
27008B
27008-1043 KEY-LOCK,BLANK |
27008-1043 |
from US $12.83 |
||
|
27008C
|
27008C
27008-1044 KEY-LOCK,BLANK |
27008-1044 |
from US $12.83 |
||
|
27008D
|
27008D
27008-1132 KEY-LOCK,BLANK |
27008-1132 |
from US $12.12 |
||
|
27008E
|
27008E
27008-1133 KEY-LOCK,BLANK |
27008-1133 |
from US $12.12 |
||
|
27008F
|
27008F
27008-1134 KEY-LOCK,BLANK |
27008-1134 |
from US $12.12 |
||
|
27008G
|
27008G
27008-1135 KEY-LOCK,BLANK |
27008-1135 |
from US $12.12 |
||
|
27010
|
27010
27010-1421 SWITCH,INVERT SENSOR |
27010-1421 |
from US $140.13 |
||
|
92009
|
92009
92009-1897 SCREW,4X20 |
92009-1897 |
from US $1.27 |
||
|
92210
|
92210
92210-1109 NUT |
92210-1109 |
from US $7.87 |
