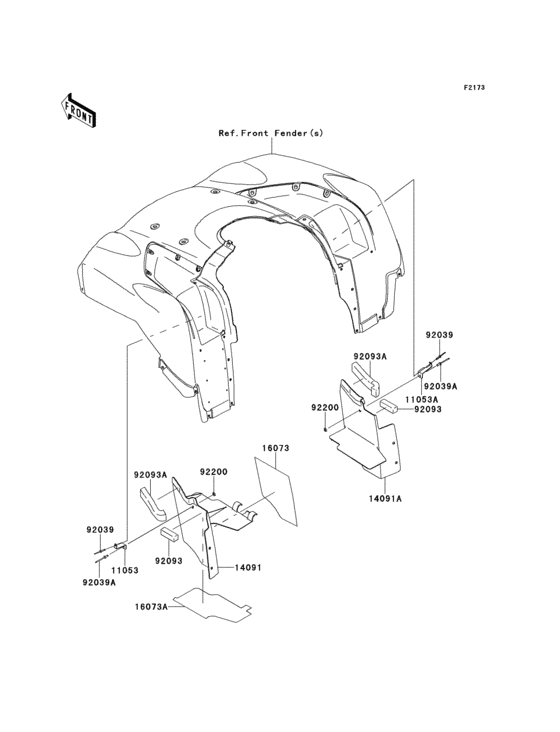

Flap Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Sales region
- Europe
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11053
|
11053
11053-1979 BRACKET,INNER FLAP,LH |
11053-1979 |
US $2.03 |
||
|
11053A
|
11053A
11053-1980 BRACKET,INNER FLAP,RH |
11053-1980 |
US $3.86 |
||
|
14091
|
14091
14091-0491 COVER,FRONT FENDER,LH |
14091-0491 |
US $42.89 |
||
|
14091A
|
14091A
14091-0492 COVER,FRONT FENDER,RH |
14091-0492 |
US $42.89 |
||
|
16073
|
16073
16073-0037 INSULATOR,INNER FLAP, |
16073-0037 |
US $11.05 |
||
| replacement | |||||
|
16073
|
16073
16073-0931 Insulator,Inner Flap, |
16073-0931 |
US $13.70 |
||
|
16073A
|
16073A
16073-0038 INSULATOR,INNER FLAP, |
16073-0038 |
US $11.05 |
||
| replacement | |||||
|
16073A
|
16073A
16073-0934 Insulator,Inner Flap, |
16073-0934 |
US $13.70 |
||
|
92039
|
92039
92039-1260 RIVET |
92039-1260 |
from US $2.02 |
||
|
92039A
|
92039A
92039-3763 RIVET,3.2X8 |
92039-3763 |
from US $0.97 |
||
|
92093
|
92093
92093-0038 SEAL,FR FENDER,LH |
92093-0038 |
from US $1.87 |
||
|
92093A
|
92093A
92093-1580 SEAL |
92093-1580 |
from US $1.71 |
||
|
92200
|
92200
92200-1251 WASHER,3.5X8X1 |
92200-1251 |
from US $0.79 |
||
