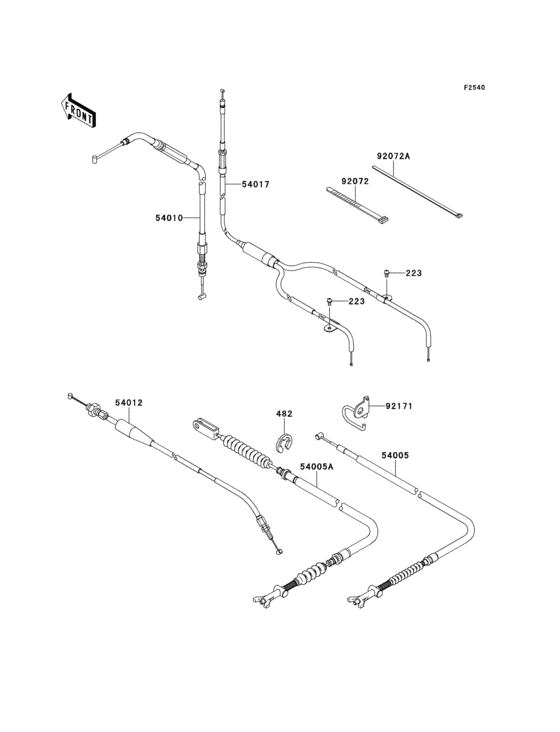

Cables Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
223
|
223
223AA0408 SCREW-PAN-WS-CROS,4X8 |
223AA0408 |
from US $0.63 |
||
|
482
|
482
482EA8000 CIRCLIP-TYPE-E |
482EA8000 |
from US $1.05 |
||
|
54005
|
54005
54005-0017 CABLE-BRAKE,PARKING |
54005-0017 |
US $64.77 |
||
|
54005A
|
54005A
54005-0018 CABLE-BRAKE,FOOT |
54005-0018 |
US $64.77 |
||
|
54010
|
54010
54010-0570 CABLE,FRONT DIFF LOCK |
54010-0570 |
from US $49.31 |
||
|
54012
|
54012
54012-0108 CABLE-THROTTLE |
54012-0108 |
from US $28.15 |
||
|
54017
|
54017
54017-0034 CABLE-STARTER |
54017-0034 |
US $100.25 |
||
|
92072
|
92072
92072-030 BAND,SHORT |
92072-030 |
from US $3.01 |
||
|
92072A
|
92072A
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
|
92171
|
92171
92171-0228 CLAMP,BRAKE CABLE |
92171-0228 |
from US $5.90 |
