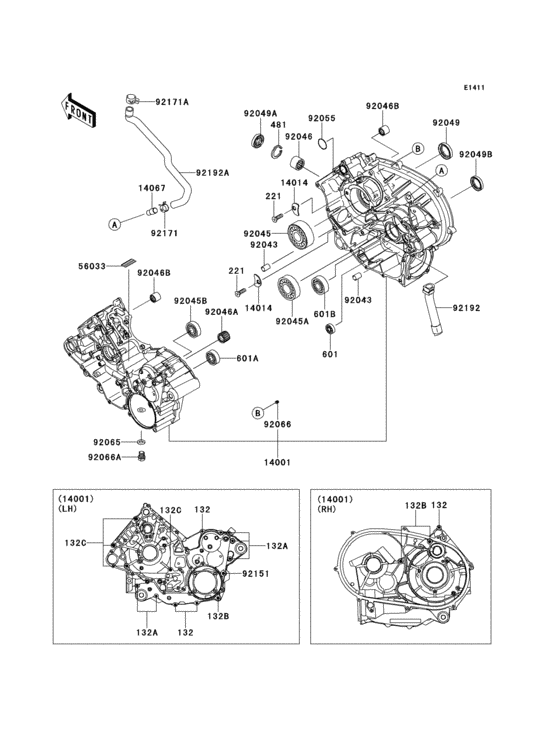

Crankcase Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BD0640 Bolt |
132BD0640 |
from US $1.27 |
||
|
132A
|
132A
132BD0665 BOLT-FLANGED-SMALL |
132BD0665 |
from US $1.40 |
||
|
132B
|
132B
132BD08110 BOLT-FLANGED-SMALL |
132BD08110 |
from US $2.65 |
||
|
132C
|
132C
132BD0875 BOLT-FLANGED-SMALL |
132BD0875 |
from US $1.40 |
||
|
221
|
221
221AA0616 SCREW-CSK-CROS |
221AA0616 |
from US $0.92 |
||
|
481
|
481
481J3700 CIRCLIP.37MM |
481J3700 |
from US $1.58 |
||
|
601
|
601
601A6000 BEARING-BALL |
601A6000 |
from US $7.13 |
||
|
601A
|
601A
601A6004 BEARING-BALL |
601A6004 |
from US $9.82 |
||
|
601B
|
601B
601A6304 BEARING BALL #6304 |
601A6304 |
from US $12.82 |
||
|
14001
|
14001
14001-0562 SET-CRANKCASE |
14001-0562 |
US $1,707.30 |
||
|
14014
|
14014
14014-0006 PLATE-POSITION |
14014-0006 |
from US $10.08 |
||
|
14067
|
14067
14067006 BREATHER JOINT |
14067006 |
from US $15.05 |
||
|
56033
|
56033
56033-0078 LABEL-MANUAL,OIL LEVE |
56033-0078 |
from US $3.43 |
||
|
92043
|
92043
92043-1506 PIN |
92043-1506 |
from US $1.90 |
||
|
92045
|
92045
92045-0012 BEARING-BALL |
92045-0012 |
from US $85.08 |
||
|
92045A
|
92045A
92045-1190 BEARING-BALL,6306SH2 |
92045-1190 |
from US $30.82 |
||
|
92045B
|
92045B
92045-1389 BEARING-BALL |
92045-1389 |
from US $16.70 |
||
|
92046
|
92046
92046-0022 BEARING-NEEDLE |
92046-0022 |
from US $25.48 |
||
|
92046A
|
92046A
92046-0039 BEARING-NEEDLE |
92046-0039 |
from US $16.33 |
||
|
92046B
|
92046B
92046-1118 BEARING-NEEDLE,TA2015 |
92046-1118 |
from US $17.58 |
||
|
92049
|
92049
92049-1452 SEAL-OIL,TC35508 |
92049-1452 |
from US $8.55 |
||
|
92049A
|
92049A
92049-1570 OIL SEAL,(TCY 28x42x8) |
92049-1570 |
from US $14.41 |
||
|
92049B
|
92049B
92049-1575 SEAL-OIL |
92049-1575 |
from US $13.10 |
||
|
92055
|
92055
92055-1136 RING-O,25.7X2.4 |
92055-1136 |
from US $3.73 |
||
|
92065
|
92065
92065-097 GASKET,12X22X2,DRAIN PLUG |
92065-097 |
from US $1.61 |
||
|
92066
|
92066
92066-1012 PLUG |
92066-1012 |
from US $3.96 |
||
|
92066A
|
92066A
92066-1174 PLUG,OIL DRAIN,12X15 |
92066-1174 |
from US $4.44 |
||
|
92151
|
92151
92151-1689 BOLT,8MM |
92151-1689 |
from US $2.49 |
||
|
92171
|
92171
92171-0329 Clamp |
92171-0329 |
from US $5.39 |
||
|
92171A
|
92171A
92171-0514 CLAMP |
92171-0514 |
from US $4.05 |
||
|
92192
|
92192
92192-0703 TUBE,OIL RETURN |
92192-0703 |
from US $12.28 |
||
|
92192A
|
92192A
92192-1021 TUBE,BREATHER |
92192-1021 |
from US $8.55 |
