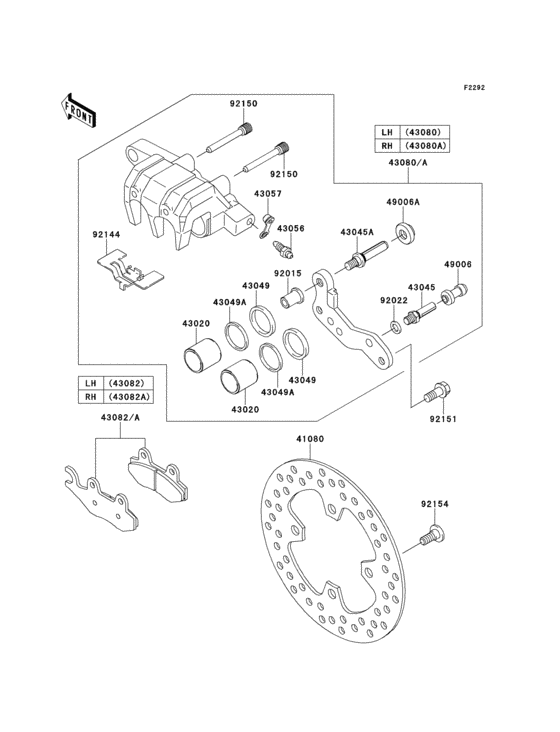

Front brake Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41080
|
41080
41080-0585 DISC,FR |
41080-0585 |
from US $233.50 |
||
|
43020
|
43020
43020-1101 PISTON-COMP-BRAKE |
43020-1101 |
from US $38.02 |
||
|
43045
|
43045
43045-1010 SHAFT-CALIPER |
43045-1010 |
from US $14.10 |
||
|
43045A
|
43045A
43045-1052 SHAFT-CALIPER |
43045-1052 |
from US $10.61 |
||
|
43049
|
43049
43049-1063 PACKING |
43049-1063 |
from US $6.91 |
||
|
43049A
|
43049A
43049-1064 PACKING |
43049-1064 |
from US $5.14 |
||
|
43056
|
43056
43056-1056 BREATHER,BRAKE |
43056-1056 |
from US $10.14 |
||
|
43057
|
43057
43057-1001 CAP-BREATHER |
43057-1001 |
from US $3.48 |
||
|
43080
|
43080
43080-0089 CALIPER-SUB-ASSY,LH |
43080-0089 |
from US $297.04 |
||
|
43080A
|
43080A
43080-0090 CALIPER-SUB-ASSY,RH |
43080-0090 |
from US $297.04 |
||
|
43082
|
43082
43082-0022 PAD-ASSY-BRAKE,FR,LH |
43082-0022 |
from US $80.06 |
||
|
43082A
|
43082A
43082-0023 PAD-ASSY-BRAKE,FR,RH |
43082-0023 |
from US $80.06 |
||
|
49006
|
49006
49006-1088 BOOT,CALIPER |
49006-1088 |
from US $8.55 |
||
|
49006A
|
49006A
49006-1242 BOOT |
49006-1242 |
from US $3.64 |
||
|
92015
|
92015
92015-1740 NUT |
92015-1740 |
from US $3.17 |
||
|
92022
|
92022
92022-1373 WASHER |
92022-1373 |
from US $2.53 |
||
|
92144
|
92144
92144-1319 SPRING,PAD |
92144-1319 |
from US $5.23 |
||
|
92150
|
92150
92150-1144 Bolt |
92150-1144 |
from US $6.34 |
||
|
92151
|
92151
92151-1793 BOLT,FLANGED,8X19 |
92151-1793 |
from US $1.40 |
||
|
92154
|
92154
92154-1165 BOLT,HEXALOBULAR SOCK |
92154-1165 |
from US $1.87 |
