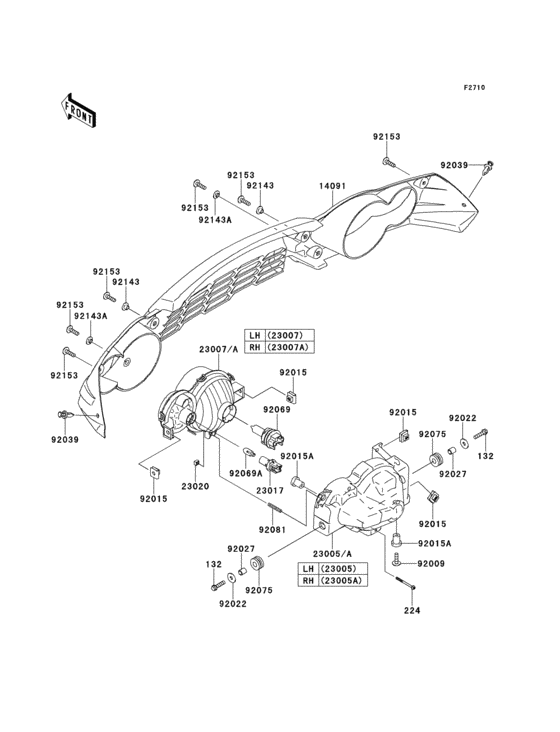

Headlight(s) Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0625 BOLT-FLANGED-SMALL,6X |
132BA0625 |
from US $1.27 |
||
|
224
|
224
224AA0445 SCREW-PAN-WP-CROS |
224AA0445 |
from US $0.94 |
||
|
14091
|
14091
14091-0736-6Z COVER,HEAD LAMP,F.BLACK |
14091-0736-6Z |
US $82.65 |
||
|
23005
|
23005
23005-0006 BODY-COMP-HEAD LAMP,L |
23005-0006 |
US $34.54 |
||
|
23005A
|
23005A
23005-0007 BODY-COMP-HEAD LAMP,R |
23005-0007 |
US $34.54 |
||
|
23007
|
23007
23007-0024 LENS-COMP,HEAD LAMP,L |
23007-0024 |
from US $69.52 |
||
|
23007A
|
23007A
23007-0025 LENS-COMP,HEAD LAMP,R |
23007-0025 |
from US $96.31 |
||
|
23017
|
23017
23017-0001 SOCKET,HEAD LAMP |
23017-0001 |
from US $20.84 |
||
|
23020
|
23020
23020018 NUT,4MM |
23020018 |
from US $3.17 |
||
|
92009
|
92009
92009-1256 SCREW,6X22,BLACK |
92009-1256 |
from US $1.74 |
||
|
92015
|
92015
92015-1094 NUT,MUFFLER |
92015-1094 |
from US $5.39 |
||
|
92015A
|
92015A
92015-1692 NUT,RUBBER,6MM |
92015-1692 |
from US $4.80 |
||
|
92022
|
92022
92022-125
WASHER 6.5X20X1.6T
|
92022-125 |
— | ||
| replacement | |||||
|
92022
|
92022
92200-0283 WASHER,6.5X20X1.6 |
92200-0283 |
from US $0.72 |
||
|
92027
|
92027
92027-162 COLLAR,REAR FENDER |
92027-162 |
from US $4.80 |
||
|
92039
|
92039
92039-1229
RIVET
|
92039-1229 |
— | ||
| replacement | |||||
|
92039
|
92039
92039-0776 RIVET |
92039-0776 |
US $1.51 |
||
|
92069
|
92069
92069-0005 BULB,12V 40/40W |
92069-0005 |
from US $33.66 |
||
|
92069A
|
92069A
92069-0006 BULB,12V 5W |
92069-0006 |
from US $7.78 |
||
|
92075
|
92075
92075-1690 DAMPER |
92075-1690 |
from US $3.90 |
||
|
92081
|
92081
92081-1896 SPRING |
92081-1896 |
from US $2.95 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92153
|
92153
92153-0574 BOLT,SOCKET,6X22 |
92153-0574 |
from US $1.11 |
||
