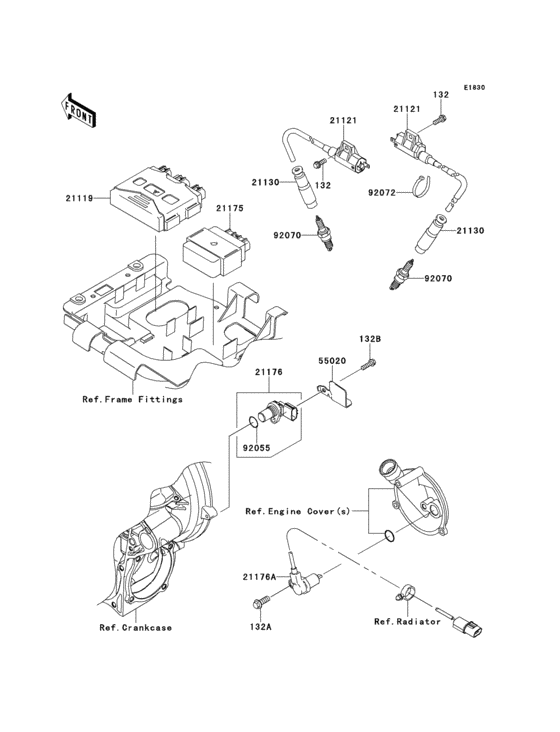

Ignition System Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
132
|
132
132BA0616 BOLT-FLANGED-SMALL,6X |
132BA0616 |
from US $0.79 |
||
|
132A
|
132A
132BA0822 BOLT-FLANGED-SMALL |
132BA0822 |
from US $1.27 |
||
|
132B
|
132B
132BD0620 BOLT-FLANGED-SMALL |
132BD0620 |
from US $1.11 |
||
|
21119
|
21119
21119-0078 IGNITER |
21119-0078 |
from US $514.77 |
||
|
21121
|
21121
21121-0018 COIL-IGNITION |
21121-0018 |
from US $48.37 |
||
|
21130
|
21130
21130-1071 Cap-spark plug |
21130-1071 |
from US $24.09 |
||
|
21175
|
21175
21175-0216 CONTROL UNIT-ELECTRON |
21175-0216 |
US $614.93 |
||
| replacement | |||||
|
21175
|
21175
21175-0935 CONTROL UNIT-ELECTRON |
21175-0935 |
from US $438.57 |
||
|
21176
|
21176
21176-1104 SENSOR,SPEED |
21176-1104 |
from US $108.20 |
||
|
21176A
|
21176A
21176-1109 SENSOR,REVERSE |
21176-1109 |
from US $73.09 |
||
|
55020
|
55020
55020-0762 GUARD |
55020-0762 |
from US $2.33 |
||
|
92055
|
92055
92055-1718 RING-O |
92055-1718 |
from US $1.68 |
||
|
92070
|
92070
59026-1130
COIL-PULSING
|
59026-1130 |
— | ||
|
92072
|
92072
92072-1239 BAND,L=188 |
92072-1239 |
from US $1.90 |
||
