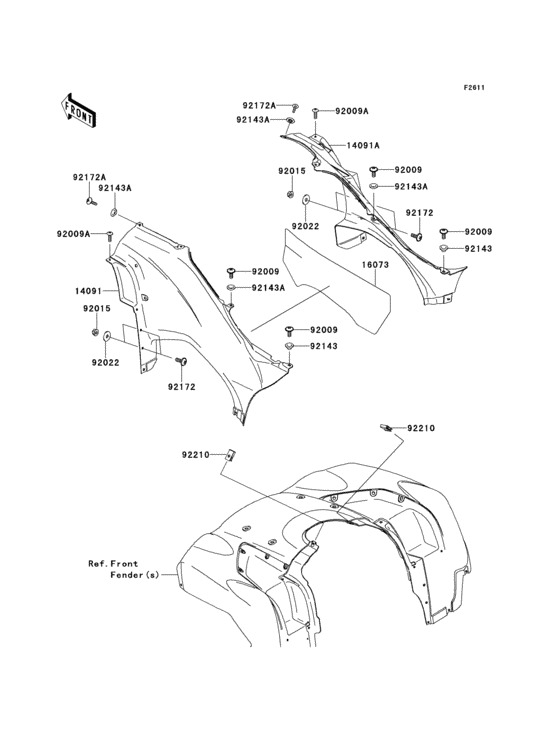

Side covers Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
14091
|
14091
14091-0137-839 COVER,SIDE,LH,BLACK |
14091-0137-839 |
US $51.29 |
||
|
14091A
|
14091A
14091-0138-839 COVER,SIDE,RH,BLACK |
14091-0138-839 |
US $51.29 |
||
|
16073
|
16073
16073-0030 INSULATOR,SIDE COVER |
16073-0030 |
US $34.31 |
||
| replacement | |||||
|
16073
|
16073
16073-0927 Insulator,Side Cover |
16073-0927 |
US $44.71 |
||
|
92009
|
92009
92009-1621
SCREW
|
92009-1621 |
— | ||
| replacement | |||||
|
92009
|
92009
92009-1694 SCREW |
92009-1694 |
from US $5 |
||
|
92009A
|
92009A
92009-1655 SCREW |
92009-1655 |
from US $2.69 |
||
|
92015
|
92015
92015-1603 NUT |
92015-1603 |
from US $2.85 |
||
|
92022
|
92022
92022-1346 WASHER,6.5X20X1.6.BLA |
92022-1346 |
from US $0.66 |
||
|
92143
|
92143
92143-1057 COLLAR |
92143-1057 |
from US $3.17 |
||
|
92143A
|
92143A
92143-1087 COLLAR |
92143-1087 |
from US $2.85 |
||
|
92172
|
92172
92172-0002 SCREW,6X18 |
92172-0002 |
from US $1.27 |
||
|
92172A
|
92172A
92172-0488 SCREW,TAPPING,6X20 |
92172-0488 |
from US $1.27 |
||
|
92210
|
92210
92210-0624 NUT,LEAF SPRING,6MM |
92210-0624 |
from US $0.94 |
||
