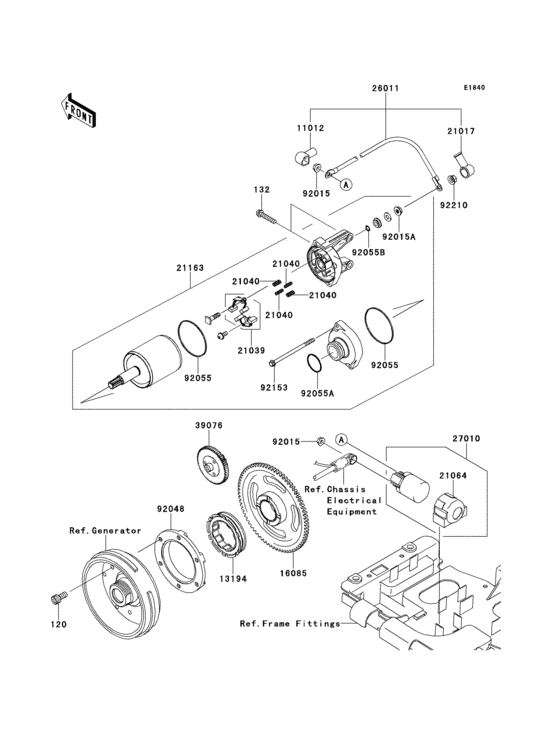

Starter motor Diagram Kawasaki KVF650 Brute Force 650 4X4i
- Model code
- KVF650FEF
- Engine Capacity
- 633
- Year
- 2014
- Frame
- JKAVFEF1 EB520601 - 999999
- Stroke (2-stroke or 4-stroke)
- 4 stroke
- 2WD/4WD/AWD
- 4WD
- Model
- Brute Force 650 4X4i
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120CA0816 BOLT-SOCKET |
120CA0816 |
from US $1.27 |
||
|
132
|
132
132BD0630 BOLT-FLANGED-SMALL |
132BD0630 |
from US $1.27 |
||
|
11012
|
11012
11012-1354 CAP,TERMINAL |
11012-1354 |
from US $7.44 |
||
|
13194
|
13194
13194-1094 CLUTCH-ONEWAY |
13194-1094 |
US $152.83 |
||
|
16085
|
16085
16085-1238 GEAR,STARTER |
16085-1238 |
from US $81.96 |
||
|
21017
|
21017
21017017 GROMMET,CORD |
21017017 |
from US $6.81 |
||
|
21039
|
21039
21039-0004 BRUSH,CARBON |
21039-0004 |
from US $84.52 |
||
|
21040
|
21040
21040-0003 SPRING-BRUSH |
21040-0003 |
from US $6.18 |
||
|
21064
|
21064
21064002 DAMPER,MAGNETIC SWITC |
21064002 |
from US $14.41 |
||
| replacement | |||||
|
21064
|
21064
92161-1722 DAMPER,MAGNETIC SWITC |
92161-1722 |
from US $14.10 |
||
|
21163
|
21163
21163-0037 Starter-electric |
21163-0037 |
from US $713.84 |
||
|
26011
|
26011
26011-0111 WIRE-LEAD,STARTER CAB |
26011-0111 |
from US $23.64 |
||
|
27010
|
27010
27010-1098 SWITCH,MAGNETIC |
27010-1098 |
US $131.04 |
||
| replacements | |||||
|
27010
|
27010
27010-1235 SWITCH,MAGNETIC |
27010-1235 |
from US $125.07 |
||
|
27010
|
27010
27010-0766 SWITCH,MAGNETIC |
27010-0766 |
from US $99.37 |
||
|
39076
|
39076
39076-0005 LIMITER,STARTER |
39076-0005 |
US $290.19 |
||
|
92015
|
92015
92015-1367 NUT,FLANGED,6MM |
92015-1367 |
from US $3.01 |
||
|
92015A
|
92015A
92015-1476 NUT,6MM |
92015-1476 |
from US $2.69 |
||
|
92048
|
92048
92048-0002 RACE,ONE WAY CLUTCH |
92048-0002 |
from US $88.03 |
||
|
92055
|
92055
92055-0136 RING-O |
92055-0136 |
from US $3.48 |
||
|
92055A
|
92055A
92055-1276 RING-O |
92055-1276 |
from US $7.62 |
||
|
92055B
|
92055B
92055-1370 RING-O,4.5X2.0 |
92055-1370 |
from US $2.85 |
||
|
92153
|
92153
92153-1850 Bolt |
92153-1850 |
from US $6.34 |
||
|
92210
|
92210
92210-0188 NUT,6MM |
92210-0188 |
from US $0.95 |
||
