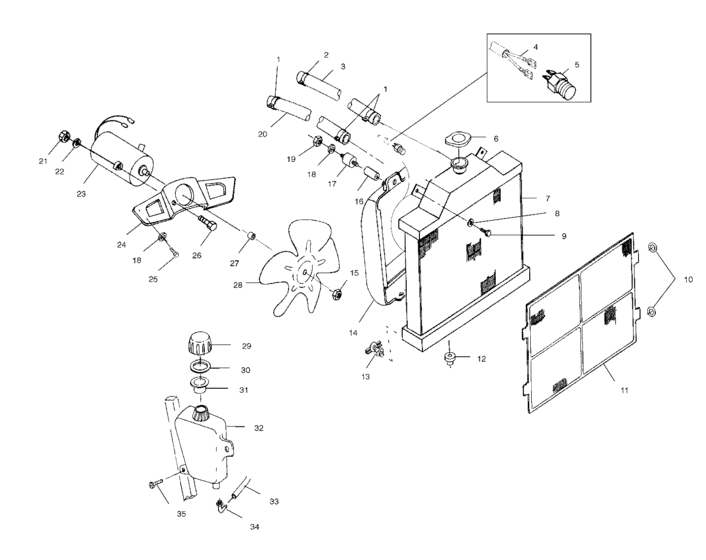

Cooling system (A99CH45IA) Diagram Polaris DIESEL
- Model code
- A99CH45CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7080614 Clamp,Hose10; |
7080614 |
US $6.69 |
||
|
2
|
2
7080696 Clamp,hose,1,25,worm drive |
7080696 |
US $3.94 |
||
|
3
|
3
5411410
Hose,3/4x22"
|
5411410 |
— | ||
|
4
|
4
2460515
Harness,fan/therm,switch
|
2460515 |
— | ||
|
5
|
5
4010202 Switch-thermal,4 stroke,500cc |
4010202 |
US $59.10 |
||
|
6
|
6
2511189
Cap, radiator
|
2511189 |
— | ||
| replacement | |||||
|
6
|
6
2511270 Cap, pressure,(13 lb) *** |
2511270 |
US $22.45 |
||
|
7
|
7
1240015
Radiator,"u"flow
|
1240015 |
— | ||
|
8
|
8
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
9
|
9
7512113 Bolt10; |
7512113 |
US $2.45 |
||
|
10
|
10
5410607 O ring (10) |
5410607 |
US $1.89 |
||
|
11
|
11
5431760
Cover,radiator,w/mesh
|
5431760 |
— | ||
|
12
|
12
5410584 Bushing-mount,lower radiator |
5410584 |
US $9.19 |
||
|
13
|
13
7052181
Valve,drain cock
|
7052181 |
— | ||
|
14
|
14
5432593
Shroud,fan,(atv)
ATV; |
5432593 |
— | ||
|
15
|
15
7542154
Nut
|
7542154 |
— | ||
|
16
|
16
5020572 Spacer, mount |
5020572 |
US $8.17 |
||
|
17
|
17
3110032 Mount, rubber (10) |
3110032 |
US $5.11 |
||
|
18
|
18
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
19
|
19
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
20
|
20
5411605
Hose-lower engine
|
5411605 |
— | ||
|
21
|
21
7547004 Nut (10) |
7547004 |
US $2.45 |
||
|
22
|
22
7558201 Washer, flat10; |
7558201 |
US $2.92 |
||
|
23
|
23
4170011
Motor,fan,lq,w/connector
|
4170011 |
— | ||
|
24
|
24
5241355-067
Brkt,cool,fan,blk
|
5241355-067 |
— | ||
|
25
|
25
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
26
|
26
7511875 Screw10; |
7511875 |
US $2.98 |
||
|
27
|
27
5333457
Spacer
|
5333457 |
— | ||
|
28
|
28
5240822 Blade, fan |
5240822 |
US $70.89 |
||
|
29
|
29
5430743 Cap, overflow |
5430743 |
US $3.26 |
||
|
30
|
30
5810279 Gasket (10) |
5810279 |
US $2.66 |
||
|
31
|
31
5431895
Plug,cap
|
5431895 |
— | ||
| replacement | |||||
|
31
|
31
5433774 Cap,plug9x(grn),flex temp(10) |
5433774 |
US $3.26 |
||
|
32
|
32
5432855 Tank,surge,diesel |
5432855 |
US $33.50 |
||
|
33
|
33
8450003-1525 Line,fuel,1/4 id(1525 cm,)1525 CM.; |
8450003-1525 |
US $85.45 |
||
|
34
|
34
7052065 Fitting,90 degree (10) |
7052065 |
US $9.85 |
||
|
35
|
35
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
