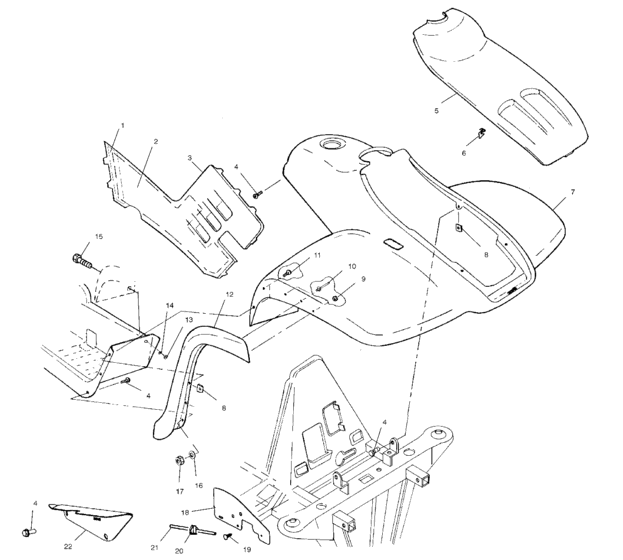

Front cab (A10CH46CA) Diagram Polaris DIESEL
- Model code
- A10CH46CA
- Year
- 2001
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5811491 Foil-rh |
5811491 |
US $4.34 |
||
|
2
|
2
5811743
Foil,foam,side panel
|
5811743 |
— | ||
|
3
|
3
5812138 Foam-lh |
5812138 |
US $4.94 |
||
|
3
|
3
2632017-157 Panel,asm,side,rh,bonnie blue |
2632017-157 |
US $122.12 |
||
|
3
|
3
2632289-157 Panel/foam,lh,bon blue,asm, |
2632289-157 |
US $107.36 |
||
|
4
|
4
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
5
|
5
5432088-157
Cover,front,bon,blue
|
5432088-157 |
— | ||
|
6
|
6
7670085 Clip,spring(10) |
7670085 |
US $1.77 |
||
|
7
|
7
2631987-157
Cab, front,
If built before 4/04/01;If built before 4/04/01; |
2631987-157 |
— | ||
|
7
|
7
2632299-157 Cab,front,svc,bon blue,asm,If built after 4/04/01;If built after 4/04/01; |
2632299-157 |
US $324.98 |
||
|
8
|
8
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
9
|
9
7670068 Nut, push-on(10) * |
7670068 |
US $0.79 |
||
|
10
|
10
7661645 Rivet(50) * |
7661645 |
US $1.89 |
||
|
11
|
11
7517312 Screw (10) |
7517312 |
US $1.89 |
||
|
12
|
12
5431798-070 Guard-mudflap,front,black,lh |
5431798-070 |
US $56.14 |
||
|
12
|
12
5431799-070 Guard-mudflap,front,black,rh |
5431799-070 |
US $56.14 |
||
|
13
|
13
7541925 Nut, nylok 10-24 y |
7541925 |
US $13.10 |
||
|
14
|
14
7555792 Washer |
7555792 |
US $2.45 |
||
|
15
|
15
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
15
|
15
7511989
Screw
|
7511989 |
— | ||
|
16
|
16
7555931
Washer
|
7555931 |
— | ||
| replacement | |||||
|
16
|
16
7558221 Washer(10) |
7558221 |
US $0.79 |
||
|
17
|
17
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
18
|
18
5811917 Shield-deflector |
5811917 |
US $9.15 |
||
|
19
|
19
7621509 Rivet,plasti-lock(50) * |
7621509 |
US $197 |
||
|
20
|
20
7670109 Clip-routing |
7670109 |
US $3.75 |
||
|
21
|
21
5411668
Line, breather
|
5411668 |
— | ||
|
22
|
22
5244913-067 Guard-splash,sportman,lh,blk |
5244913-067 |
US $34.67 |
||
|
22
|
22
5244914-067 Guard-splash,sportman,rh,blk |
5244914-067 |
US $32.52 |
||
