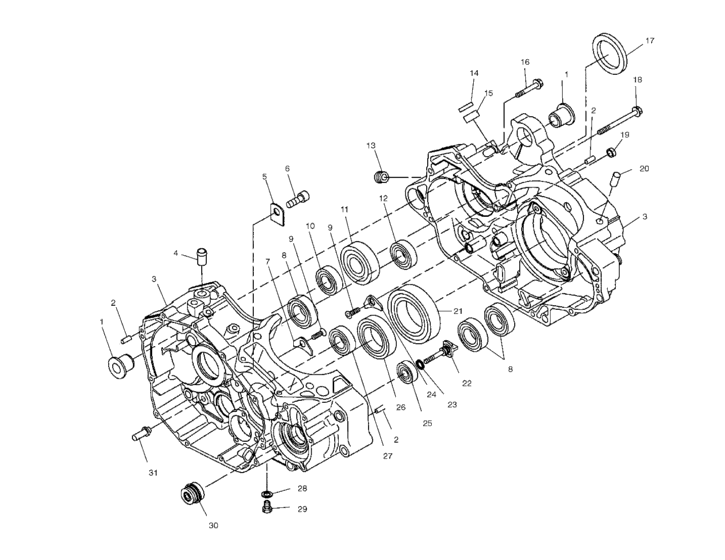

Crankcase (A03GJ50AA/AB) Diagram Polaris PREDATOR 500
- Model code
- A03GJ50AA/AB
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3087930
Collar
|
3087930 |
— | ||
|
2
|
2
3080103
Pin, dowel
|
3080103 |
— | ||
| replacement | |||||
|
2
|
2
3086838 Pin,dowel |
3086838 |
US $4.73 |
||
|
3
|
3
3087923
Crankcase asm,
Incl. all less 16,18,28,29; |
3087923 |
— | ||
|
4
|
4
3085525 Pipe,air breather |
3085525 |
US $14.28 |
||
|
5
|
5
3088138 Plate,stopper |
3088138 |
US $4.15 |
||
|
6
|
6
3088050 Bolt,socket head (10) |
3088050 |
US $3.75 |
||
|
7
|
7
3087939 Plate,pto side |
3087939 |
US $7.09 |
||
|
8
|
8
3088137
Bearing,ball
|
3088137 |
— | ||
|
9
|
9
3087932 Screw,counter sunk (10) |
3087932 |
US $3.26 |
||
|
10
|
10
3087935 Bearing,ball |
3087935 |
US $23.64 |
||
|
11
|
11
3087929 Bearing,ball |
3087929 |
US $31.52 |
||
|
12
|
12
3087928 Bearing,ball |
3087928 |
US $16.75 |
||
|
13
|
13
3084862 Plug, blind |
3084862 |
US $7.51 |
||
|
14
|
14
3087926
Seal,oil
|
3087926 |
— | ||
|
15
|
15
3087925
Bearing,release
|
3087925 |
— | ||
|
16
|
16
3086412
Bolt, flange
|
3086412 |
— | ||
|
17
|
17
3086510 Seal,oil,crankcase |
3086510 |
US $33.50 |
||
|
18
|
18
3087940 Bolt,flange (10) |
3087940 |
US $1.77 |
||
|
19
|
19
3087927 Seal,oil |
3087927 |
US $15.75 |
||
|
20
|
20
3087266 Knock,pipe |
3087266 |
US $4.53 |
||
|
21
|
21
3087924
Bearing,ball
|
3087924 |
— | ||
|
22
|
22
3087936
Shaft, water pump
Incl. 23,25; |
3087936 |
— | ||
|
23
|
23
3087938
O-ring
|
3087938 |
— | ||
|
24
|
24
3087931 Plate,mag side |
3087931 |
US $7.09 |
||
|
25
|
25
3087937 Bearing,ball |
3087937 |
US $16.75 |
||
|
26
|
26
3087933
Bearing,roller
|
3087933 |
— | ||
|
27
|
27
3087934
Bearing,ball
|
3087934 |
— | ||
|
28
|
28
3082956 Gasket (10) |
3082956 |
US $34.10 |
||
|
29
|
29
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
29
|
29
3086749
Plug
|
3086749 |
— | ||
|
30
|
30
3084837 Seal,mechanical * |
3084837 |
US $85.33 |
||
|
31
|
31
3086195 Pin stopper |
3086195 |
US $14.09 |
||
