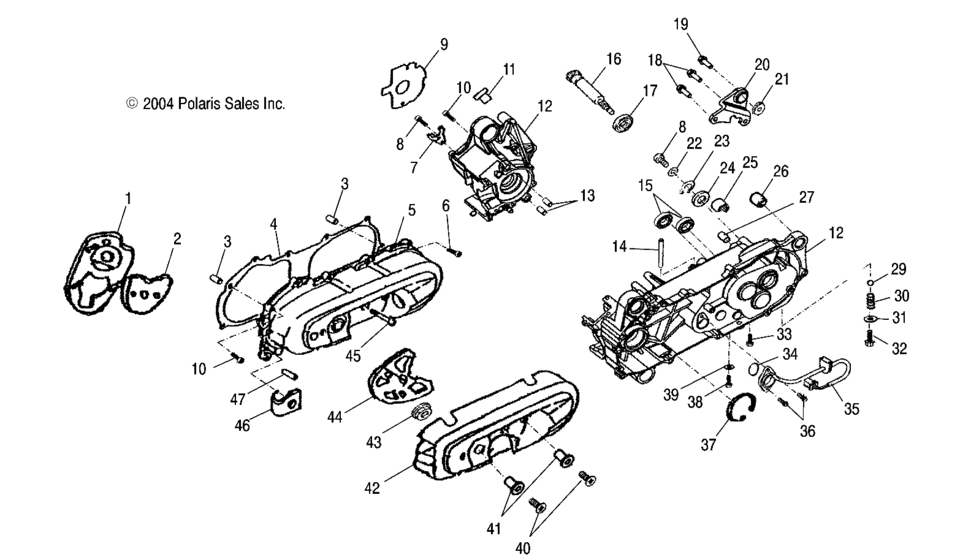

Crankcase (A05KA09CA/CB) Diagram Polaris PREDATOR 90
- Model code
- A05KA09CA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
0450166
Protector a 11343-117-000
|
0450166 |
— | ||
|
2
|
2
0450164 Filter 11345-117-000 |
0450164 |
US $6.91 |
||
|
3
|
3
0450142 Pin-dowel |
0450142 |
US $1.49 |
||
|
4
|
4
0450141
Gasket-crankcase cover,lh
|
0450141 |
— | ||
|
5
|
5
0451671 Cover,clutch |
0451671 |
US $144.45 |
||
|
6
|
6
0450148 Bolt-socket,hex(10) |
0450148 |
US $1.89 |
||
|
7
|
7
0450157 Bracket-oil seal |
0450157 |
US $4.34 |
||
|
8
|
8
0450158 Bolt-socket,hex(10) |
0450158 |
US $1.49 |
||
|
9
|
9
0450159
Gasket-generator *
|
0450159 |
— | ||
|
10
|
10
0450138 Bolt-socket(10) |
0450138 |
US $2.45 |
||
|
11
|
11
0450170 Plug-rubber |
0450170 |
US $3.75 |
||
|
12
|
12
0454187
Asm-cranckase,90 youth
|
0454187 |
— | ||
|
13
|
13
0450137 Pin-dowel (10) |
0450137 |
US $2.77 |
||
|
14
|
14
0452127
Breather-crankcase,upper
|
0452127 |
— | ||
|
15
|
15
0450254 Bearing-ball |
0450254 |
US $23.64 |
||
|
16
|
16
0452130 Shaft-drive,primary |
0452130 |
US $69.93 |
||
|
17
|
17
0450199 Bearing |
0450199 |
US $31.52 |
||
|
18
|
18
0450298 Bolt-hex(10) * |
0450298 |
US $3.75 |
||
|
19
|
19
0450684 Bolt-hex washer(10) |
0450684 |
US $2.45 |
||
|
20
|
20
0452131
Mount-engine,rear
|
0452131 |
— | ||
|
21
|
21
0450132 Bushing, rubber |
0450132 |
US $5.02 |
||
|
22
|
22
0450041 Washer-plain(10) |
0450041 |
US $3.75 |
||
|
23
|
23
0450198 Circlip-external (10) |
0450198 |
US $2.45 |
||
|
24
|
24
0450200 Seal-oil |
0450200 |
US $15.75 |
||
|
25
|
25
0452139 Bearing-needle |
0452139 |
US $27.16 |
||
|
26
|
26
0451139 Bushing-rubber |
0451139 |
US $6.20 |
||
|
27
|
27
0452125 Breather-crankcase,lower |
0452125 |
US $9.91 |
||
|
29
|
29
0452134 Ball-steel |
0452134 |
US $3.64 |
||
|
30
|
30
0452135
Spring, detent
|
0452135 |
— | ||
|
31
|
31
0452136 Washer-flat |
0452136 |
US $1.61 |
||
|
32
|
32
0452137 Bolt-hex |
0452137 |
US $5.43 |
||
|
33
|
33
0452126 Bolt-hex,washer face |
0452126 |
US $5.25 |
||
|
34
|
34
0452129 O-ring-gear position sensor |
0452129 |
US $1.66 |
||
|
35
|
35
0452128 Sensor-gear position |
0452128 |
US $41.60 |
||
|
36
|
36
0452138 Bolt-hex,flange |
0452138 |
US $0.79 |
||
|
37
|
37
0450162 Circlip-internal (10) |
0450162 |
US $3.94 |
||
|
38
|
38
0452132 Bolt-hex,washer face |
0452132 |
US $3.43 |
||
|
39
|
39
0452133 Washer-flat |
0452133 |
US $2.05 |
||
|
40
|
40
0450167 Bolt-flat head(10) |
0450167 |
US $3.26 |
||
|
41
|
41
0450168 Grommet |
0450168 |
US $1.49 |
||
|
42
|
42
0451672 Guard,clutch cover |
0451672 |
US $40.58 |
||
|
43
|
43
0450150 Nut-flange,hex(10)* |
0450150 |
US $0.79 |
||
|
44
|
44
0450152
Protector-b 11344-117-000
|
0450152 |
— | ||
|
45
|
45
0450151 Bolt-socket,hex(10) |
0450151 |
US $3.75 |
||
|
46
|
46
0450160 Bracket-carburetor tube |
0450160 |
US $2.28 |
||
|
47
|
47
0450147
Shaft
|
0450147 |
— |
