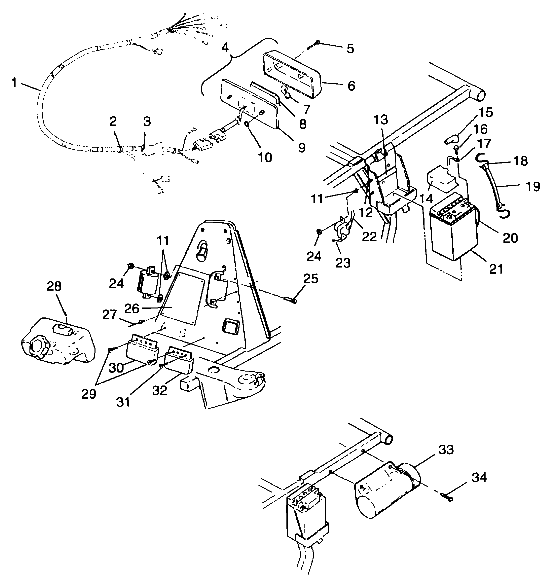

Electrical/taillight (A99BG38CA) Diagram Polaris SCRAMBLER 400
- Model code
- A99BG38CA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460495
Harness,main wire
|
2460495 |
— | ||
|
2
|
2
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
3
|
3
2434012 Ckt,breaker,20 amp, |
2434012 |
US $45.69 |
||
|
4
|
4
2432038
Light, tail/brake
Incl. 5-10; |
2432038 |
— | ||
|
5
|
5
7512088 Screw |
7512088 |
US $2.98 |
||
|
6
|
6
4032085 Lens,stop&t/l, |
4032085 |
US $24.43 |
||
|
7
|
7
4030043 Bulb |
4030043 |
US $4.94 |
||
|
8
|
8
4032086 Gasket,t/l&stop/l |
4032086 |
US $7.09 |
||
|
9
|
9
4032087 Backing,(stop&tail)STOP&TAIL; |
4032087 |
US $9.15 |
||
|
10
|
10
7670093 Clip, retainer(10)10; |
7670093 |
US $3.75 |
||
|
11
|
11
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
12
|
12
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
13
|
13
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
14
|
14
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
15
|
15
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
16
|
16
2200361 Kit-battery bolt (short)SHORT; |
2200361 |
US $1.77 |
||
|
17
|
17
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
18
|
18
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
19
|
19
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
20
|
20
5432077 Tube,vent |
5432077 |
US $6.11 |
||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
23
|
23
4010129 Cable,sol/start,dblboot |
4010129 |
US $40.37 |
||
|
24
|
24
7541925 Nut, nylok 10-24 y10; |
7541925 |
US $13.10 |
||
|
25
|
25
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
26
|
26
4040063
Board,terminal,150 alt,atv
|
4040063 |
— | ||
|
27
|
27
7621336 Rivet,(50)50; |
7621336 |
US $0.79 |
||
|
28
|
28
7512076 Screw(10)10; |
7512076 |
US $0.79 |
||
|
29
|
29
7512024 Screw10; |
7512024 |
US $2.45 |
||
|
30
|
30
4060199 Limiter,rpm,hub,gnd,lr83-1 |
4060199 |
US $135.07 |
||
|
31
|
31
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
32
|
32
4060193 Rectifier/regulator,lr39-1 |
4060193 |
US $150.06 |
||
|
33
|
33
2620087
Toolbox asm.
Incl. Lid Cover and Gasket; |
2620087 |
— | ||
| replacement | |||||
|
33
|
33
2632221
Toolbox asm
Incl. Lid Cover and Gasket; |
2632221 |
— | ||
|
33
|
33
5431973
Lid cover,toolbox
|
5431973 |
— | ||
| replacement | |||||
|
33
|
33
2632221
Toolbox asm
|
2632221 |
— | ||
|
33
|
33
5811079
Gasket,toolbox lid
|
5811079 |
— | ||
|
34
|
34
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
