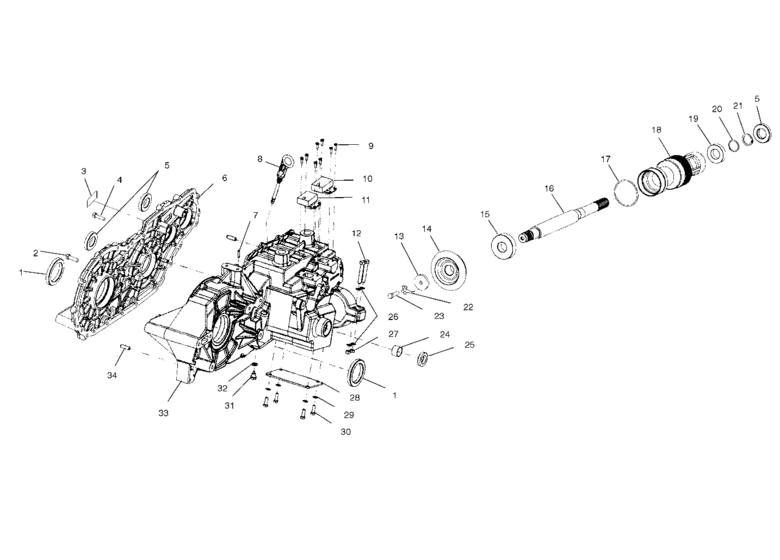

Gearcase (A99CH50EB; Cases and Snorkel) Diagram Polaris WORKER 500
- Model code
- A99CH50EA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233256
Seal
|
3233256 |
— | ||
|
2
|
2
3233252 Screw |
3233252 |
US $8.87 |
||
|
3
|
3
3233636 Decal-switch |
3233636 |
US $3.26 |
||
|
4
|
4
3233026 Screw |
3233026 |
US $2.98 |
||
|
5
|
5
3233248
Seal
|
3233248 |
— | ||
|
6
|
6
3233671
Gearcase-lh
|
3233671 |
— | ||
|
7
|
7
3233037 Vent |
3233037 |
US $6.41 |
||
|
8
|
8
3233475
Dipstick
|
3233475 |
— | ||
|
9
|
9
3233616
Screw,tap
|
3233616 |
— | ||
|
10
|
10
3233617
Switch
|
3233617 |
— | ||
|
11
|
11
3233635
Switch, 3 position
|
3233635 |
— | ||
|
12
|
12
3233442 Bolt |
3233442 |
US $2.77 |
||
|
13
|
13
3233352 Washer |
3233352 |
US $2.28 |
||
|
14
|
14
3233476
Gear,31t,snorkel *
|
3233476 |
— | ||
|
16
|
16
3233446
Shaft,snorkel
|
3233446 |
— | ||
|
17
|
17
3233302
O-ring
|
3233302 |
— | ||
|
18
|
18
3233303 Snorkel |
3233303 |
US $188.18 |
||
|
19
|
19
3233305 Bearing,ball |
3233305 |
US $35.46 |
||
|
20
|
20
3233353 Spacer1.180x.995x.010; |
3233353 |
US $3.15 |
||
|
20
|
20
3233354 Spacer1.180x.995x.025; |
3233354 |
US $3.15 |
||
|
20
|
20
3233355 Spacer1.180x.995x.040; |
3233355 |
US $3.26 |
||
|
20
|
20
3233356
Spacer
1.180x.995x.005; |
3233356 |
— | ||
|
20
|
20
3233357 Spacer1.180x.995x.008;See Footnote; |
3233357 |
US $39.36 |
||
|
21
|
21
3233306 Ring,retaining |
3233306 |
US $2.45 |
||
|
22
|
22
3233444 Bolt,lock snorkel gear |
3233444 |
US $2.98 |
||
|
23
|
23
3233351 Bolt |
3233351 |
US $2.45 |
||
|
24
|
24
3233292 Bushing |
3233292 |
US $30.33 |
||
|
25
|
25
3233293
Seal
|
3233293 |
— | ||
|
27
|
27
3233291 Nut,flexlock |
3233291 |
US $3.75 |
||
|
28
|
28
3233294 Plate,cover |
3233294 |
US $14.28 |
||
|
29
|
29
3233295 Washer,lock |
3233295 |
US $2.45 |
||
|
30
|
30
3233296 Screw |
3233296 |
US $2.45 |
||
|
31
|
31
3233253
Plug, drain
|
3233253 |
— | ||
| replacement | |||||
|
31
|
31
3233777 Plug-hex flange |
3233777 |
US $19.30 |
||
|
32
|
32
3233254 Washer,plug |
3233254 |
US $4.73 |
||
|
33
|
33
3233672
Gearcase-rh
|
3233672 |
— | ||
| replacement | |||||
|
33
|
33
3233748 Gearcase,rh |
3233748 |
US $1,495.87 |
||
|
34
|
34
3233247 Pin, dowel |
3233247 |
US $7.56 |
||
