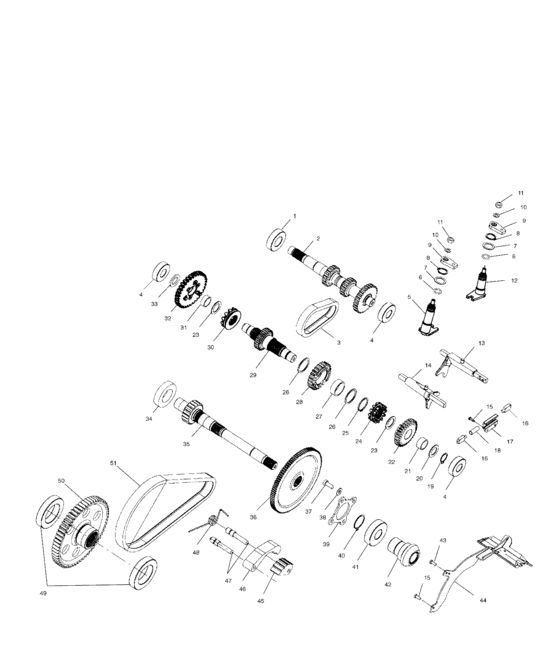

Gearcase (A99CH50EB; Internal Components) Diagram Polaris WORKER 500
- Model code
- A99CH50EA
- Year
- 1999
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233019 Bearing |
3233019 |
US $39.38 |
||
|
2
|
2
3233361
Shaft,input,31t,hcr
|
3233361 |
— | ||
|
3
|
3
3233036 Chain,silent,34p |
3233036 |
US $65.99 |
||
|
4
|
4
3233018 Bearing |
3233018 |
US $29.54 |
||
|
5
|
5
3233661
Shaft-shift
|
3233661 |
— | ||
|
6
|
6
3233548 O-ring |
3233548 |
US $14.58 |
||
|
7
|
7
3233040 Washer |
3233040 |
US $7.68 |
||
|
8
|
8
3233045 Ring,retaining |
3233045 |
US $3.26 |
||
|
9
|
9
3233153 Bellcrank |
3233153 |
US $19.30 |
||
|
10
|
10
3233054 Washer |
3233054 |
US $3.26 |
||
|
11
|
11
3233055
Nut
|
3233055 |
— | ||
|
12
|
12
3233662
Shaft-shift
|
3233662 |
— | ||
|
13
|
13
3233663 Fork,shift,low |
3233663 |
US $233.42 |
||
|
14
|
14
3233664
Fork,shift,h/r
|
3233664 |
— | ||
|
15
|
15
3233033
Screw
|
3233033 |
— | ||
| replacement | |||||
|
15
|
15
3233747 Screw-tapping,w/lock washer |
3233747 |
US $2.45 |
||
|
16
|
16
3233308 Pin,interlock |
3233308 |
US $20.69 |
||
|
17
|
17
3233309 Bracket,interlock |
3233309 |
US $25.43 |
||
|
18
|
18
3233189
Spring
|
3233189 |
— | ||
|
19
|
19
3233177 Ring,retaining |
3233177 |
US $3.75 |
||
|
20
|
20
3233176 Washer |
3233176 |
US $7.68 |
||
|
21
|
21
3233017 Bearing,needle |
3233017 |
US $38.41 |
||
|
22
|
22
3233668
Gear,30t
|
3233668 |
— | ||
|
23
|
23
3233010 Washer |
3233010 |
US $15.26 |
||
|
24
|
24
3233667
Engagement-dog
|
3233667 |
— | ||
|
25
|
25
3233029 Ring,retaining |
3233029 |
US $3.75 |
||
|
26
|
26
3233012 Washer |
3233012 |
US $15.26 |
||
|
27
|
27
3233014 Bearing,needle |
3233014 |
US $48.72 |
||
|
28
|
28
3233532
Sprocket,24t,12-point
|
3233532 |
— | ||
|
29
|
29
3233362
Shaft,rev,29t,hcr
|
3233362 |
— | ||
|
30
|
30
3233666
Engagement-dog,low
|
3233666 |
— | ||
|
31
|
31
3233009 Bearing,needle |
3233009 |
US $42.35 |
||
|
32
|
32
3233665
Gear,33t
|
3233665 |
— | ||
|
33
|
33
3233007
Washer
|
3233007 |
— | ||
|
34
|
34
3233020 Bearing |
3233020 |
US $54.18 |
||
|
35
|
35
3233485
Shaft,ctr,drive
|
3233485 |
— | ||
|
36
|
36
3233360 Gear,o/p,100t,hcr |
3233360 |
US $231.44 |
||
|
37
|
37
3233262 Screw |
3233262 |
US $2.28 |
||
|
38
|
38
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
39
|
39
3233263 Cover-bearing |
3233263 |
US $12.20 |
||
|
40
|
40
3233364 Ring,retaining |
3233364 |
US $3.75 |
||
|
41
|
41
3233265 Bearing, ball |
3233265 |
US $45.29 |
||
|
42
|
42
3233365
Gear,16t,spiral bevel,snorkel
|
3233365 |
— | ||
|
43
|
43
3233282
Screw
|
3233282 |
— | ||
|
44
|
44
3233669
Deflector-oil
|
3233669 |
— | ||
|
45
|
45
3233434 Cam,chain tensioner |
3233434 |
US $10.34 |
||
|
46
|
46
3233433 Shoe,chain tensioner |
3233433 |
US $26.78 |
||
|
47
|
47
3233432 Pin,dowel |
3233432 |
US $5.22 |
||
|
48
|
48
3233431 Spring,torsion |
3233431 |
US $20.28 |
||
|
49
|
49
3233268 Bearing, ball |
3233268 |
US $63.98 |
||
|
50
|
50
3233670
Spocket-60t,36t sp
|
3233670 |
— | ||
|
51
|
51
3233430
Chain,silent
|
3233430 |
— | ||
