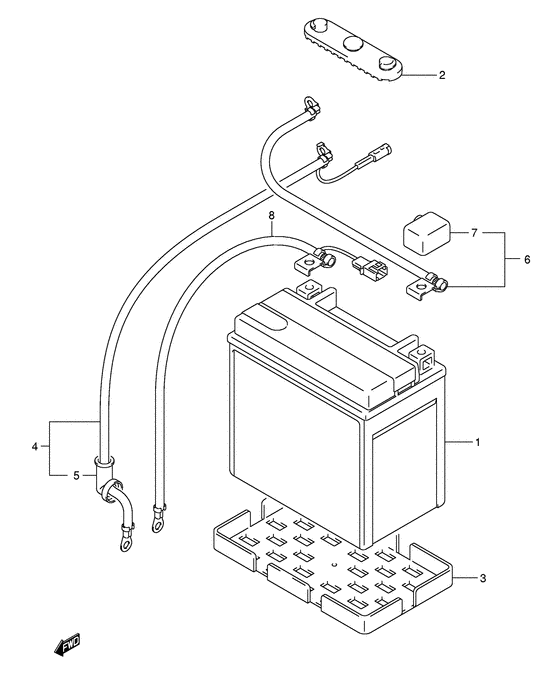

Battery Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-03G10-000
Battery assy
Battery assy (ytx20ch-bs,12v18ah); |
33610-03G10-000 |
— | ||
|
2
|
2
33652-07G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-07G00-000 |
from US $2.69 |
||
|
3
|
3
33652-16G00-000 PROTECTOR,BATTERYProtector, battery; |
33652-16G00-000 |
from US $4.26 |
||
|
4
|
4
33810-31G00-000 WIRE,STARTER MOTOR |
33810-31G00-000 |
from US $27.97 |
||
|
5
|
5
31861-48B10-000 CAP,STARTER MOTOR LEADCap, starter motor Cap, starter motor lead; |
31861-48B10-000 |
from US $4.40 |
||
|
6
|
6
33820-31G00-000 WIRE,BATTERY PLUS |
33820-31G00-000 |
from US $20.79 |
||
|
7
|
7
33624-16E00-000 CAP,BATTERY PLUSCap, battery plus term; |
33624-16E00-000 |
from US $2.56 |
||
|
8
|
8
33860-31G00-000 WIRE,BATTERY MINUS |
33860-31G00-000 |
from US $27.97 |
