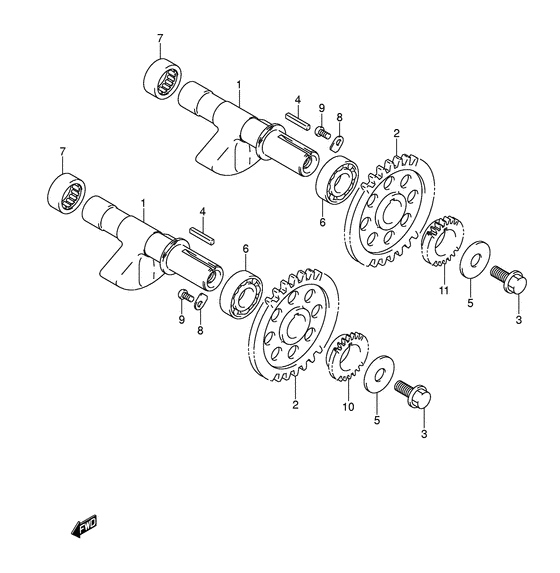

Crank balancer Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12651-31G02-000 BALANCER,CRANK |
12651-31G02-000 |
from US $81.33 |
||
|
2
|
2
12666-31G11-000 GEAR,CRANK BALANCER DRIVEN |
12666-31G11-000 |
from US $79.49 |
||
|
3
|
3
09103-10290-000 BOLT(10X20)Bolt, oil pump drive gear Bolt, 10x20; |
09103-10290-000 |
from US $1.76 |
||
|
4
|
4
09421-04005-000 KEY |
09421-04005-000 |
from US $4.28 |
||
|
5
|
5
08211-10305-000 WASHERWasher, oil pump drive gear |
08211-10305-000 |
from US $5.78 |
||
|
6
|
6
09262-20137-000 BEARING(20X42X12)Bearing, 20x42x12; |
09262-20137-000 |
from US $20.24 |
||
|
7
|
7
09263-20091-000 BEARING(20X28X16)Bearing, 20x28x16; |
09263-20091-000 |
from US $26.50 |
||
|
8
|
8
24741-21A00-000 RETAINERRetainer, crank gal brg; |
24741-21A00-000 |
from US $1.60 |
||
|
9
|
9
09125-06110-000 BOLT(6X12)Screw, retainer (6x12) Bolt, 6x12; |
09125-06110-000 |
from US $1.52 |
||
|
10
|
10
16321-31G00-000 SPROCKET,OIL PUMP DRIVE |
16321-31G00-000 |
US $59.94 |
||
|
11
|
11
17451-31G00-000 GEAR,WATER PUMP DRIVE |
17451-31G00-000 |
from US $29.26 |
