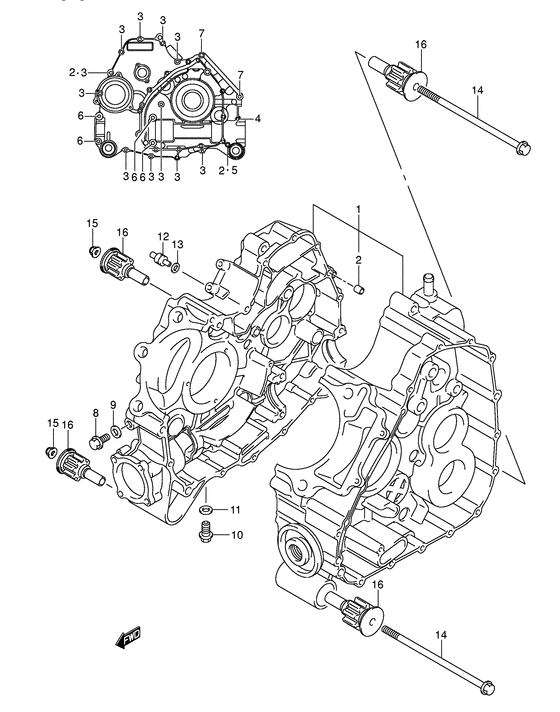

Crank case Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-31810-000
Crankcase set
|
11300-31810-000 |
— | ||
| replacement | |||||
|
1
|
1
11300-31811-000 CRANKCASE SET |
11300-31811-000 |
from US $1,606.48 |
||
|
2
|
2
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
|
3
|
3
01547-06503-000
Bolt
|
01547-06503-000 |
— | ||
| replacement | |||||
|
3
|
3
01547-0650B-000 Bolt |
01547-0650B-000 |
from US $0.84 |
||
|
4
|
4
01547-06803-000
Bolt (6x80)
|
01547-06803-000 |
— | ||
| replacement | |||||
|
4
|
4
01547-0680B-000 Bolt |
01547-0680B-000 |
from US $1.06 |
||
|
5
|
5
01547-06903-000
Bolt
|
01547-06903-000 |
— | ||
| replacement | |||||
|
5
|
5
01547-0690B-000 Bolt |
01547-0690B-000 |
from US $5.12 |
||
|
6
|
6
01550-08503-000
Bolt
|
01550-08503-000 |
— | ||
| replacement | |||||
|
6
|
6
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
7
|
7
01550-08753-000
Bolt
|
01550-08753-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0875B-000 Bolt |
01550-0875B-000 |
from US $1.40 |
||
|
7
|
7
01550-0875A-000 Bolt |
01550-0875A-000 |
from US $1.60 |
||
|
8
|
8
01550-08123-000
Bolt
Plug, oil gallery; |
01550-08123-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0812B-000 BoltPlug, drain Plug, oil gallery; |
01550-0812B-000 |
from US $0.96 |
||
|
8
|
8
01550-0812A-000 BoltPlug, oil gallery; |
01550-0812A-000 |
from US $0.91 |
||
|
9
|
9
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
10
|
10
09247-12104-000 PLUG(12X9)Plug, oil drain; |
09247-12104-000 |
from US $2.40 |
||
|
11
|
11
09168-12002-000 GASKET(12.1X16.2X3.7)Gasket |
09168-12002-000 |
from US $0.76 |
||
|
12
|
12
09493-20014-000 JET,OIL GALLERYJet, t/m oil gallery Jet, t/m oil gallery; |
09493-20014-000 |
from US $11.20 |
||
|
13
|
13
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O-ring; |
09280-04004-000 |
from US $1.82 |
||
|
14
|
14
09103-10118-000 BOLT(10X195)Bolt (l:195) Bolt, eng mtg (l:195); |
09103-10118-000 |
from US $14.69 |
||
|
15
|
15
09159-10058-000
Nut
Nut, eng mtg; |
09159-10058-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-10115-000 NUTNut, eng mtg; |
09159-10115-000 |
from US $2.58 |
||
|
16
|
16
11651-31G00-000
Bush, eng mtg
|
11651-31G00-000 |
— | ||
| replacement | |||||
|
16
|
16
11651-31G10-000 BUSH,ENGINE MOUNTING |
11651-31G10-000 |
US $29.63 |
||
