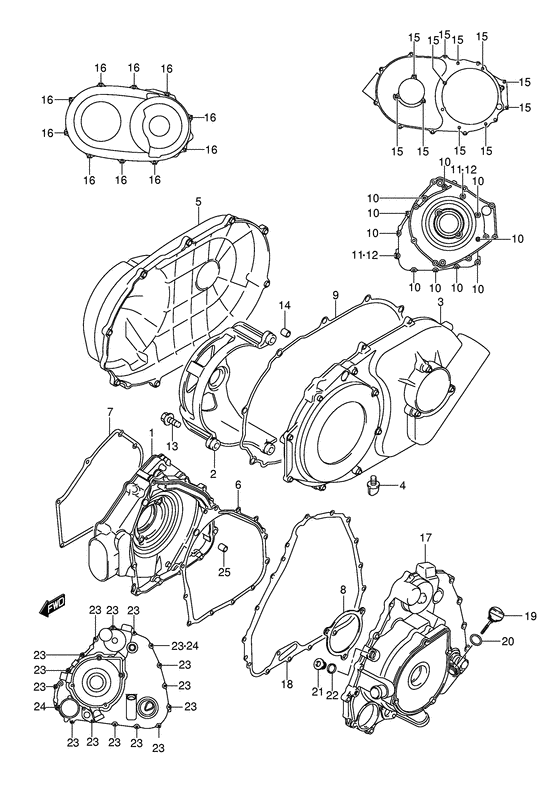

Crankcase cover Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-31G00-000
Cover,clutch
|
11341-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
11341-31G02-000 Cover,clutch |
11341-31G02-000 |
US $239.96 |
||
|
2
|
2
11342-31G00-000 HOUSING,V-BELT BEARING |
11342-31G00-000 |
US $107.27 |
||
|
3
|
3
11370-31G00-000 COVER,V BELT INNER |
11370-31G00-000 |
US $215.68 |
||
|
4
|
4
11375-31G00-000 PLUG,WATER DRAIN |
11375-31G00-000 |
US $6.44 |
||
|
5
|
5
11380-31G00-000 COVER,V BELT OUTER |
11380-31G00-000 |
US $191.69 |
||
|
6
|
6
11482-31G00-000 GASKET,CLUTCH COVER |
11482-31G00-000 |
US $18.82 |
||
|
7
|
7
11484-31G00-000 GASKET,V-BELT COVER INNER FRGasket, v-belt cover inner front Gasket, v-belt cover inner front; |
11484-31G00-000 |
US $30.69 |
||
|
8
|
8
11485-31G00-000 GASKET,V-BELT COVER INNER RRGasket, v-belt cover inner rear; |
11485-31G00-000 |
US $10.59 |
||
|
9
|
9
11486-31G00-000 GASKET,V-BELT COVER OUTER |
11486-31G00-000 |
US $32.67 |
||
|
10
|
10
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
10
|
10
01547-0625B-000 Bolt |
01547-0625B-000 |
from US $0.91 |
||
|
11
|
11
01547-06353-000
Bolt (6x35)
|
01547-06353-000 |
— | ||
| replacement | |||||
|
11
|
11
01547-0635B-000 Bolt |
01547-0635B-000 |
from US $0.91 |
||
|
12
|
12
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
|
13
|
13
01547-06353-000
Bolt (6x35)
|
01547-06353-000 |
— | ||
| replacement | |||||
|
13
|
13
01547-0635B-000 Bolt |
01547-0635B-000 |
from US $0.91 |
||
|
14
|
14
04211-09149-000 PINDowel pin |
04211-09149-000 |
from US $0.91 |
||
|
15
|
15
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
15
|
15
01547-0625B-000 Bolt |
01547-0625B-000 |
from US $0.91 |
||
|
16
|
16
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
16
|
16
01547-0625B-000 Bolt |
01547-0625B-000 |
from US $0.91 |
||
|
17
|
17
11350-31G00-000
Cover, magneto
|
11350-31G00-000 |
— | ||
| replacement | |||||
|
17
|
17
11350-31G01-000 COVER,MAGNETO |
11350-31G01-000 |
from US $228.16 |
||
|
18
|
18
11483-31G00-000 GASKET,MAGNETO COVER |
11483-31G00-000 |
US $35.43 |
||
|
19
|
19
11971-09F50-000 GAUGE,OIL LEVEL |
11971-09F50-000 |
US $13.19 |
||
|
20
|
20
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O-ring; |
09280-17003-000 |
from US $1.53 |
||
|
21
|
21
09248-14005-000
PLUG(14X12)
Plug, tdc check; |
09248-14005-000 |
— | ||
| replacement | |||||
|
21
|
21
09248-14011-000 PLUGPlug, tdc check; |
09248-14011-000 |
from US $2.13 |
||
|
22
|
22
09168-14014-000 GASKET(14X18X1.5) |
09168-14014-000 |
from US $1.10 |
||
|
23
|
23
01547-06253-000
Bolt
|
01547-06253-000 |
— | ||
| replacement | |||||
|
23
|
23
01547-0625B-000 Bolt |
01547-0625B-000 |
from US $0.91 |
||
|
24
|
24
01547-06353-000
Bolt (6x35)
|
01547-06353-000 |
— | ||
| replacement | |||||
|
24
|
24
01547-0635B-000 Bolt |
01547-0635B-000 |
from US $0.91 |
||
|
25
|
25
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
