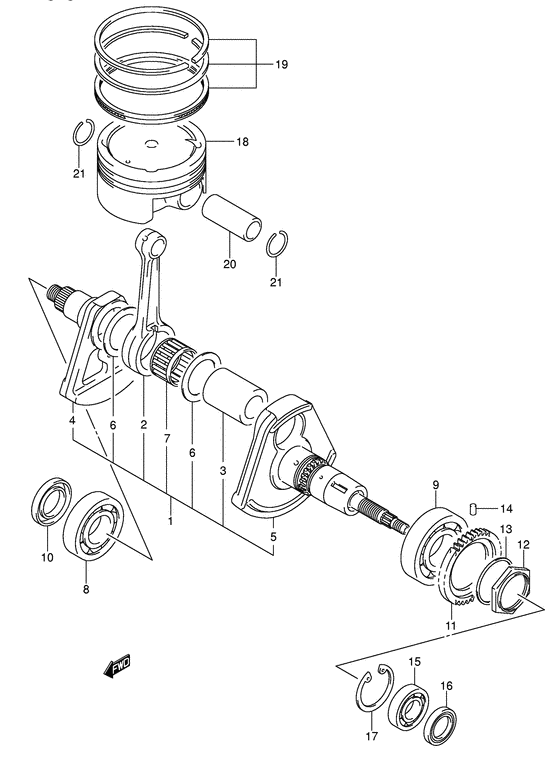

Crankshaft Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-31G00-000
Crankshaft assy
|
12200-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
12200-31G12-000 CRANKSHAFT ASSY |
12200-31G12-000 |
from US $823.68 |
||
|
2
|
2
12161-31G00-000
Connrod
|
12161-31G00-000 |
— | ||
| replacement | |||||
|
2
|
2
12161-31G01-000 CONNECTING ROD |
12161-31G01-000 |
US $184.50 |
||
|
3
|
3
12210-31D00-000 PIN,CRANK |
12210-31D00-000 |
from US $57 |
||
|
4
|
4
12220-31G00-000 Crankshaft, r |
12220-31G00-000 |
US $341.13 |
||
| replacement | |||||
|
4
|
4
12220-31G10-000 CRANKSHAFT,R |
12220-31G10-000 |
from US $257.60 |
||
|
5
|
5
12261-31G00-000 Crankshaft, l |
12261-31G00-000 |
US $357.23 |
||
| replacement | |||||
|
5
|
5
12261-31G10-000 CRANKSHAFT,L |
12261-31G10-000 |
from US $268.64 |
||
|
6
|
6
09160-41002-000 WASHER(41X61X1) |
09160-41002-000 |
from US $5.62 |
||
|
7
|
7
09263-41006-000
Bearing
|
09263-41006-000 |
— | ||
| replacements | |||||
|
7
|
7
09263-41008-000
BEARING(41X51X24.8)
|
09263-41008-000 |
— | ||
|
7
|
7
09263-41009-000 Bearing,crank Pin |
09263-41009-000 |
US $115.82 |
||
|
8
|
8
12223-31G00-000
Bearing, r
|
12223-31G00-000 |
— | ||
| replacement | |||||
|
8
|
8
12223-31G02-000 BEARING,CRANKSHAFT,R |
12223-31G02-000 |
US $207.89 |
||
|
9
|
9
09262-45007-000 BEARING(45X85X19)Bearing, l; |
09262-45007-000 |
from US $62.32 |
||
|
10
|
10
09282-34001-000 SEAL,OIL(34X52X6)Seal, crankshaft mdl oil Seal, oil; |
09282-34001-000 |
US $42.13 |
||
|
11
|
11
12661-31G00-000
Gear, crank balancer drive
|
12661-31G00-000 |
— | ||
| replacement | |||||
|
11
|
11
12661-31G01-000 GEAR,CRANK BALANCER DRIVE |
12661-31G01-000 |
from US $73.97 |
||
|
12
|
12
12664-31G00-000 NUT,CRANK BALANCER DRIVE GEAR |
12664-31G00-000 |
from US $15.04 |
||
|
13
|
13
09160-45006-000 WASHER(45X60X1.2) |
09160-45006-000 |
from US $8.81 |
||
|
14
|
14
09261-05005-000 PIN(5X8)Knock pin Pin; |
09261-05005-000 |
from US $0.76 |
||
|
15
|
15
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) |
09262-25006-000 |
from US $14.88 |
||
|
16
|
16
09283-25095-000 SEAL,OIL(25X42X6)Seal, oil Seal, oil; |
09283-25095-000 |
from US $13.60 |
||
|
17
|
17
08331-41479-000 CIRCLIP |
08331-41479-000 |
from US $2.56 |
||
|
18
|
18
12111-31G00-0F0 PISTON |
12111-31G00-0F0 |
from US $167.44 |
||
|
19
|
19
12140-31G00-000 RING SET,PISTON |
12140-31G00-000 |
US $131.61 |
||
|
20
|
20
12151-31G00-000 PIN,PISTON |
12151-31G00-000 |
US $31.21 |
||
|
21
|
21
09381-23003-000 CIRCLIP |
09381-23003-000 |
from US $0.91 |
||
