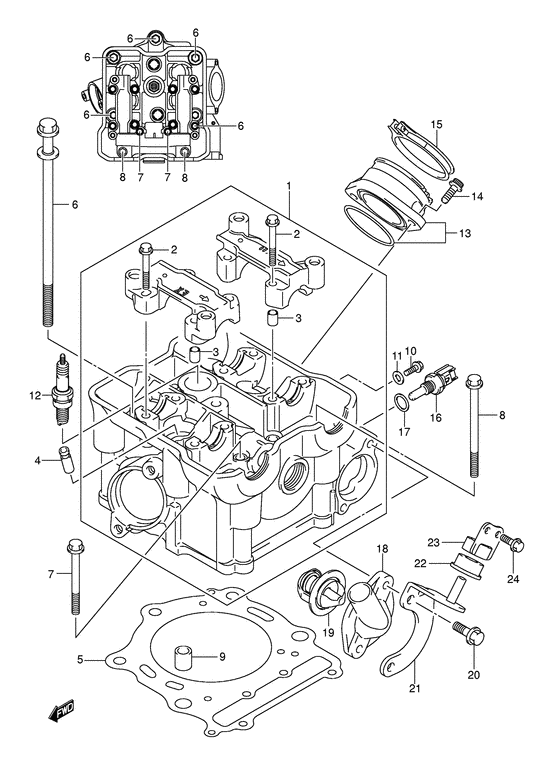

Cylinder head Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-31G00-000 HEAD ASSY,CYLINDER |
11100-31G00-000 |
from US $1,087.68 |
||
|
2
|
2
09103-06266-000 BOLT(6X40)Bolt, 6x40 Bolt, 6x40; |
09103-06266-000 |
from US $1.22 |
||
|
3
|
3
09206-08001-000 PIN(8X11)Pin, 6.2x8x11; |
09206-08001-000 |
from US $1.53 |
||
|
4
|
4
11115-32E70-000 GUIDE,VALVEGuide, valve (os:0.3) Guide, valve (os:0.3); Opt |
11115-32E70-000 |
from US $19.32 |
||
|
5
|
5
11141-31G00-000 GASKET,CYLINDER HEAD |
11141-31G00-000 |
US $58.26 |
||
|
6
|
6
11161-31G00-000 BOLT,CYLINDER HEAD(L:200)Bolt, cylinder head (l:200); |
11161-31G00-000 |
from US $9.86 |
||
|
7
|
7
09103-06060-000 BOLT(6X100)Bolt, 6x100 Bolt, 6x100; |
09103-06060-000 |
from US $2.08 |
||
|
8
|
8
09103-06103-000 BOLT(6X70)Bolt, 6x70; |
09103-06103-000 |
from US $1.52 |
||
|
9
|
9
04211-13189-000 PINPin; |
04211-13189-000 |
from US $1.22 |
||
|
10
|
10
07120-06123-000
Bolt
Plug; |
07120-06123-000 |
— | ||
| replacement | |||||
|
10
|
10
07120-0612B-000 BoltPlug Plug; |
07120-0612B-000 |
from US $0.96 |
||
|
11
|
11
09168-06023-000 GASKET(5.8X13X1.2)Gasket (5.8x13x1.2) Gasket, 5.8x13x1.2; |
09168-06023-000 |
from US $1.52 |
||
|
12
|
12
09482-00528-000 PLUG,SPARK(CR6E)Plug, spark (cr6e); |
09482-00528-000 |
from US $9.69 |
||
|
12
|
12
09482-00529-000 PLUG,SPARK(U20ESR-N)Plug, spark (u20esr-n); |
09482-00529-000 |
from US $6.40 |
||
|
12
|
12
09482-00456-000 SPARK PLUG NGK(CR8E)Plug, spark (cr8e); Opt |
09482-00456-000 |
from US $10.10 |
||
|
12
|
12
09482-00457-000 SPARK PLUG (U24ESR-N)Plug, spark (u24esr-n); Opt |
09482-00457-000 |
from US $7.16 |
||
|
12
|
12
09482-00516-000 PLUG,SPARK(CR7E)Plug, spark (cr7e); Opt |
09482-00516-000 |
from US $9.69 |
||
|
12
|
12
09482-00515-000 PLUG,SPARK(U22ESR-N)Plug, spark (u22esr-n); Opt |
09482-00515-000 |
US $9.30 |
||
|
12
|
12
09482-00458-000 PLUG,SPARK(CR9E)Plug, spark (cr9e) Plug, spark (cr9e); Opt |
09482-00458-000 |
from US $9.69 |
||
|
12
|
12
09482-00459-000 PLUG,SPARK(U27ESR-N) OPTPlug, spark (u27-esr-n); Opt |
09482-00459-000 |
from US $9.59 |
||
|
13
|
13
13101-31G00-000
PIPE ASSY,INTAKE
|
13101-31G00-000 |
— | ||
| replacement | |||||
|
13
|
13
13101-31G01-000 Pipe Assy,intake |
13101-31G01-000 |
US $66.91 |
||
|
14
|
14
09106-06105-000 BOLT(6X18)Bolt, intake pipe; |
09106-06105-000 |
from US $4.49 |
||
|
15
|
15
09402-62208-000 CLAMPClamp, intake pipe; |
09402-62208-000 |
from US $2.88 |
||
|
16
|
16
13650-10G00-000 Sensor,water Temp |
13650-10G00-000 |
from US $25.84 |
||
|
17
|
17
09168-12017-000 GASKET(12X17X1)Gasket, drain plug Gasket, water temp sensor; |
09168-12017-000 |
from US $1.06 |
||
|
18
|
18
17661-31G00-000 COVER,THERMOSTATCover, thermostat |
17661-31G00-000 |
from US $22.45 |
||
|
19
|
19
17670-06G60-000
THERMOSTAT,WATER
|
17670-06G60-000 |
— | ||
| replacement | |||||
|
19
|
19
17670-06G61-000 Thermostat Comp,water |
17670-06G61-000 |
from US $34.78 |
||
|
20
|
20
01550-08253-000
Bolt, rear
|
01550-08253-000 |
— | ||
| replacements | |||||
|
20
|
20
01550-0825B-000 Bolt |
01550-0825B-000 |
from US $1.06 |
||
|
20
|
20
01550-0825A-000 Bolt |
01550-0825A-000 |
from US $0.47 |
||
|
21
|
21
11653-31G00-000
Plate, eng mtg damper
|
11653-31G00-000 |
— | ||
| replacement | |||||
|
21
|
21
11653-31G02-000 PLATE,ENG MTG DAMPER |
11653-31G02-000 |
from US $9.86 |
||
|
22
|
22
11654-31G00-000 DAMPER,ENGINE MOUNTING |
11654-31G00-000 |
US $5.20 |
||
|
23
|
23
11655-31G00-000
Stopper, eng mtg
|
11655-31G00-000 |
— | ||
| replacement | |||||
|
23
|
23
11655-31G03-000 STOPPER,ENGINE BUSH |
11655-31G03-000 |
US $20.01 |
||
|
24
|
24
01550-08123-000
Bolt
|
01550-08123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0812B-000 BoltPlug, drain |
01550-0812B-000 |
from US $0.96 |
||
|
24
|
24
01550-0812A-000 Bolt |
01550-0812A-000 |
from US $0.91 |
||
