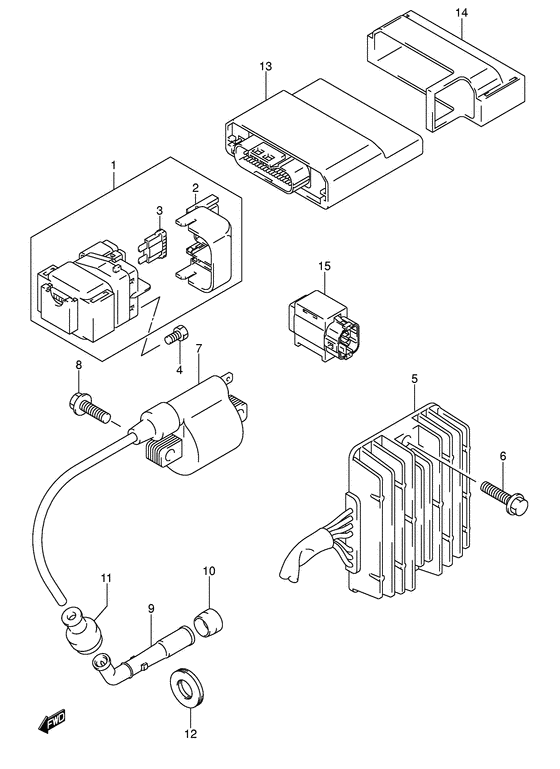

Electrical Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-35F00-000 RELAY ASSY,STARTING MOTOR |
31800-35F00-000 |
from US $77.28 |
||
|
2
|
2
31861-26E00-000 COVER,STARTER RELAYCover, starter relay; |
31861-26E00-000 |
from US $1.92 |
||
|
3
|
3
09481-30101-000 FUSE(30A)Fuse (30a); |
09481-30101-000 |
from US $1.22 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Bolt, starting motor (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32800-41F10-000
Rectifier Assy
|
32800-41F10-000 |
— | ||
| replacement | |||||
|
5
|
5
32800-47H00-000 Rectifier Assy |
32800-47H00-000 |
from US $264.48 |
||
|
6
|
6
02162-06253-000
Bolt
Bolt, rectifier; |
02162-06253-000 |
— | ||
| replacement | |||||
|
6
|
6
02162-0625A-000 SCREWBolt, rectifier; |
02162-0625A-000 |
from US $0.76 |
||
|
7
|
7
33410-19B10-000 COIL ASSY,IGNITION |
33410-19B10-000 |
US $133.40 |
||
|
8
|
8
01550-06203-000
Bolt
Bolt, ignition coil; |
01550-06203-000 |
— | ||
| replacement | |||||
|
8
|
8
01550-0620B-000 BoltBolt, inspection cap Bolt, ignition coil; |
01550-0620B-000 |
from US $0.76 |
||
|
9
|
9
33510-17G00-000 CAP ASSY,SPARK PLUG |
33510-17G00-000 |
from US $23.56 |
||
|
10
|
10
33541-23E01-000 SEAL,SPARK PLUG CAPSeal, spark plug cap; |
33541-23E01-000 |
from US $2.58 |
||
|
11
|
11
33542-38B00-000 SEAL,HIGH TENSION CORDSeal, hightension cord Seal, high tension cord; |
33542-38B00-000 |
from US $1.52 |
||
|
12
|
12
33543-33E01-000 COVER,SPARK PLUG CAP |
33543-33E01-000 |
from US $2.74 |
||
|
13
|
13
32920-31G01-000
Control unit, fi
|
32920-31G01-000 |
— | ||
| replacements | |||||
|
13
|
13
32920-31G05-000
CONTROL UNIT,FI
|
32920-31G05-000 |
— | ||
|
13
|
13
32920-31G06-000 Control Unit,fi |
32920-31G06-000 |
US $714.54 |
||
|
14
|
14
32980-31G00-000 HOLDER,FI CONTROL UNIT |
32980-31G00-000 |
from US $7.95 |
||
|
15
|
15
33960-06G10-000 SENSOR ASSY,FUEL CUT |
33960-06G10-000 |
from US $60.04 |
||
