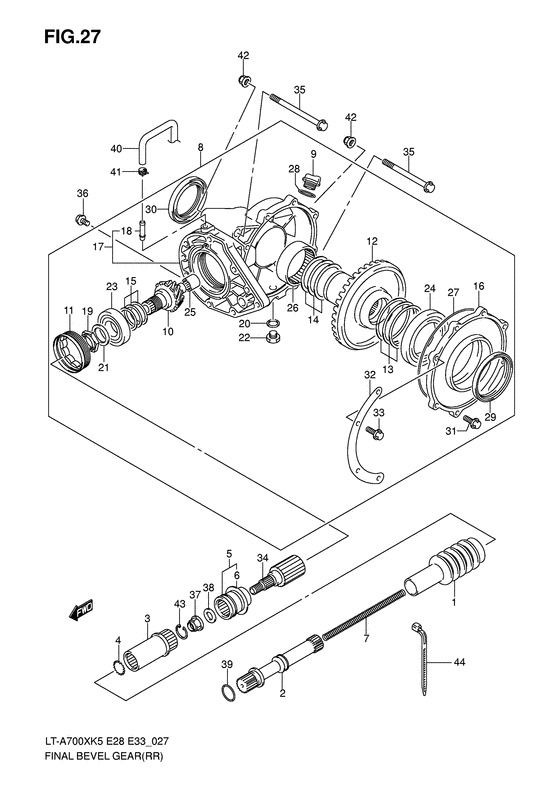

Final bevel gear (Rear) Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27153-31G10-000
BOOT,JOINT SHAFT
|
27153-31G10-000 |
— | ||
| replacement | |||||
|
1
|
1
27153-31G11-000 Boot,joint Shaft |
27153-31G11-000 |
US $22.53 |
||
|
2
|
2
27155-31G00-000 SHAFT,RR PROPELLER |
27155-31G00-000 |
from US $89.88 |
||
|
3
|
3
27157-31G00-000 JOINT,RR PROPELLER SHAFT |
27157-31G00-000 |
from US $42.32 |
||
|
4
|
4
27158-31G00-000 PLATE,RR PROP SPRING |
27158-31G00-000 |
US $3.24 |
||
|
5
|
5
27170-31G10-000 COUPLING,RR PROP SHAFT |
27170-31G10-000 |
from US $133.58 |
||
|
6
|
6
27592-31G10-000 PLATE,OUTPUT OIL SEAL |
27592-31G10-000 |
from US $3.15 |
||
|
7
|
7
27192-31G00-000 SPRING,RR PROPELLER SHAFT |
27192-31G00-000 |
from US $4.05 |
||
|
8
|
8
27410-31G00-000 CASE ASSY,RR FINAL GEAR |
27410-31G00-000 |
from US $844.80 |
||
|
9
|
9
09259-20022-000 Plug, oil fillerPlug, gear oil filler |
09259-20022-000 |
US $10.52 |
||
| replacement | |||||
|
9
|
9
09259-20008-XC0 PLUG |
09259-20008-XC0 |
from US $5.69 |
||
|
10
|
10
27311-31G00-000 GEAR,RR FINAL DRIVE BEVEL |
27311-31G00-000 |
US $336.28 |
||
|
11
|
11
27312-38F00-000 STOPPER,FINAL DRIVE BEARINGStopper, final drive; |
27312-38F00-000 |
from US $25.94 |
||
|
12
|
12
27320-31G00-000 GEAR,RR FINAL DRIVEN |
27320-31G00-000 |
US $368.66 |
||
|
13
|
13
27326-31810-000 SHIM SETShim set, final driven, l; T:0.30/0.35/0.40/0.50/0.60 |
27326-31810-000 |
from US $19.87 |
||
|
14
|
14
27327-31810-000 SHIM SETShim set, final driven, r; T:0.30/0.35/0.40/0.50/0.60 |
27327-31810-000 |
from US $18.33 |
||
|
15
|
15
27445-24810-000 SHIM SET,FINAL DRIVE GEARShim set, final drive gear; T:0.30/0.35/0.40/0.50/0.60 |
27445-24810-000 |
from US $13.28 |
||
|
16
|
16
27451-31G00-000
Case, rear final gear, l
|
27451-31G00-000 |
— | ||
|
17
|
17
27460-31G00-000
CASE,RR FINAL,R
|
27460-31G00-000 |
— | ||
|
18
|
18
09364-08003-000 UNIONUnion, breather Union, case breather; |
09364-08003-000 |
from US $4.28 |
||
|
19
|
19
09140-28006-000 NUTNut, rear final drive; |
09140-28006-000 |
from US $20.69 |
||
|
20
|
20
09168-14002-000
GASKET(13.8X18.8X4.8)
Gasket, oil drain; 13.8x18.8x4.8 |
09168-14002-000 |
— | ||
| replacement | |||||
|
20
|
20
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) Gasket, oil drain; 13.8x18.8x4.8 |
09168-14004-000 |
from US $1.22 |
||
|
21
|
21
09181-28195-000 SHIM(28X38X1)Washer, rr final dr gr Washer, rr final dr gr; 28x38x1.0 |
09181-28195-000 |
from US $6.49 |
||
|
22
|
22
09247-14013-000 PLUGPlug, oil drain Plug, oil drain; |
09247-14013-000 |
from US $0.59 |
||
|
23
|
23
09262-28023-000 BEARING(28X68X18)Bearing, final drive; 28x68x18 |
09262-28023-000 |
from US $50.93 |
||
|
24
|
24
09262-65001-000 BEARING(65X100X11)Bearing, final driven, l; 65x100x11.0 |
09262-65001-000 |
US $160.97 |
||
|
25
|
25
09263-20062-000 BEARING(20X34X18)Bearing, final drive; 20x34x18 |
09263-20062-000 |
from US $21.60 |
||
|
26
|
26
09263-55003-000 BEARING(55X67X20)Bearing, final driven, r; 55x67x20 |
09263-55003-000 |
US $124.07 |
||
|
27
|
27
09280-00029-000 O RING(D:2.4,ID:161)O-ring, bearing case, l O-ring, bearing case, l; D:2.4,id:61 |
09280-00029-000 |
from US $25.09 |
||
|
28
|
28
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O-ring, gear oil filler; D:3.1,id:16.8 |
09280-17003-000 |
from US $1.53 |
||
|
29
|
29
09283-65001-000 SEAL,OIL(65X88X8)65x88x8 |
09283-65001-000 |
from US $20.42 |
||
|
30
|
30
09283-65001-000 SEAL,OIL(65X88X8)Seal, final driven gear, r; 65x88x8 |
09283-65001-000 |
from US $20.42 |
||
|
31
|
31
09103-08197-000 BOLT(8X30)Bolt, rear Bolt, rear final gr; |
09103-08197-000 |
from US $2.33 |
||
|
32
|
32
27452-31G00-000
PLATE,RR FINAL GR COVER
|
27452-31G00-000 |
— | ||
|
33
|
33
09103-08388-000 BOLT(8X40)Bolt, rr final gr case Bolt, rr final gr case; 8x40 |
09103-08388-000 |
US $16.90 |
||
|
34
|
34
27594-31G00-000 SHAFT,RR FINAL DRIVE GEAR |
27594-31G00-000 |
US $184.07 |
||
|
35
|
35
09103-10148-000 BOLT(10X110)Bolt (l:110) Bolt, rear final gr; 10x110 |
09103-10148-000 |
from US $8.36 |
||
|
36
|
36
09103-10313-000
Bolt, rr swgarm bracket, l
10x30 |
09103-10313-000 |
— | ||
| replacement | |||||
|
36
|
36
09103-10405-000 BOLT(10X30)10x30 |
09103-10405-000 |
from US $1.82 |
||
|
37
|
37
09159-14010-000 NUTNut, rr prop shaft coup Nut, rr prop shaft coup; |
09159-14010-000 |
from US $12.77 |
||
|
38
|
38
09181-14002-000 SHIM(14X26X2)Washer, rear prop shaft; 14x26x2.0 |
09181-14002-000 |
US $4 |
||
|
39
|
39
09280-20002-000 O RING(D:3.1,ID:19.4)O ring (id:19.4, d:3.1) O-ring, rr propeller; D:3.1,id:19.4 |
09280-20002-000 |
from US $1.67 |
||
|
40
|
40
27491-31G00-000 HOSE,BREATHER |
27491-31G00-000 |
from US $20.61 |
||
|
41
|
41
09401-10403-000 CLIPClamp, breather case; |
09401-10403-000 |
from US $0.96 |
||
|
42
|
42
09159-10058-000
Nut
Nut, rear final gear; |
09159-10058-000 |
— | ||
| replacement | |||||
|
42
|
42
09159-10115-000 NUTNut, rear final gear; |
09159-10115-000 |
from US $2.58 |
||
|
43
|
43
08331-41226-000
Circlip
Circlip, joint shaft; |
08331-41226-000 |
— | ||
| replacement | |||||
|
43
|
43
08331-41229-000 CIRCLIPCirclip, joint shaft; |
08331-41229-000 |
from US $4.05 |
||
|
44
|
44
09407-18402-000 CLAMP(L:165)Clamp (l:165) Clamp (l:165); |
09407-18402-000 |
from US $0.77 |
||
