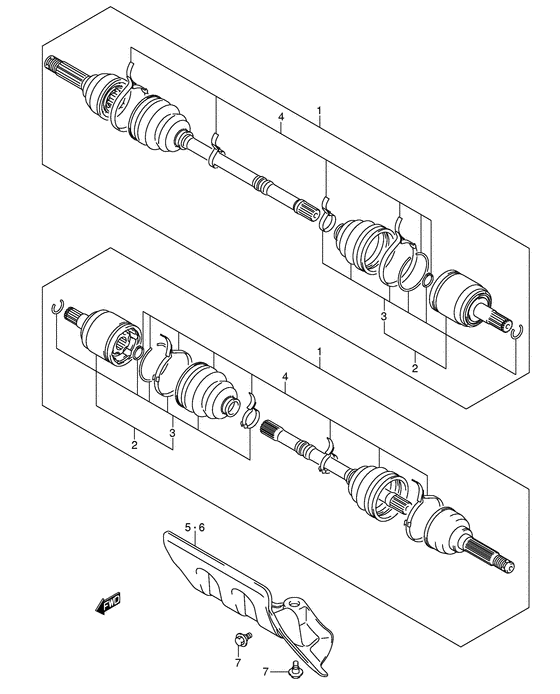

Front drive shaft Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54901-31G00-000
Shaft assy, front drive
|
54901-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
54901-31G02-000 SHAFT ASSY,FR DRIVE |
54901-31G02-000 |
from US $523.86 |
||
|
2
|
2
54933-31G00-000
Joint set
|
54933-31G00-000 |
— | ||
| replacement | |||||
|
2
|
2
54933-31G02-000 Joint set |
54933-31G02-000 |
from US $293.51 |
||
|
3
|
3
54931-31G00-000
Boot set, inner
|
54931-31G00-000 |
— | ||
| replacement | |||||
|
3
|
3
54931-31G02-000 BOOT SET,INNER |
54931-31G02-000 |
from US $76.91 |
||
|
4
|
4
54930-31G00-000
Boot set, outer
|
54930-31G00-000 |
— | ||
| replacement | |||||
|
4
|
4
54930-31G02-000 BOOT SET,OUTER |
54930-31G02-000 |
from US $76.91 |
||
|
5
|
5
54903-31G00-000 PROTECTOR,FR DRIVE SHAFT,R |
54903-31G00-000 |
from US $21.95 |
||
|
6
|
6
54904-31G00-000 PROTECTOR,FR DRIVE SHAFT,L |
54904-31G00-000 |
from US $21.95 |
||
|
7
|
7
09111-06063-000
Bolt,6x14
|
09111-06063-000 |
— | ||
| replacement | |||||
|
7
|
7
09111-06085-000 BOLT(6X12) |
09111-06085-000 |
from US $2.40 |
||
