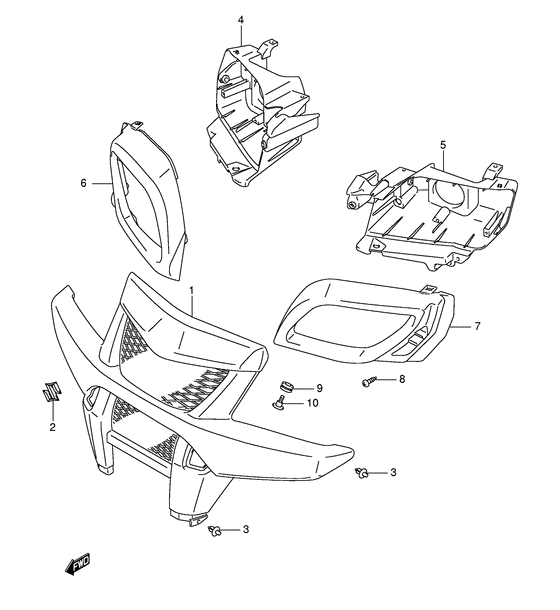

Front grille Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
53118-31G00-291
GRILE,FR
Grille, front (black); |
53118-31G00-291 |
— | ||
| replacements | |||||
|
1
|
1
53118-31G02-291
GRILLE,FRONT
Grille, front (black); |
53118-31G02-291 |
— | ||
|
1
|
1
53118-31G01-291
GRILE,FR
Grille, front (black); |
53118-31G01-291 |
— | ||
|
1
|
1
53118-31G03-291
GRILLE,FRONT
Grille, front (black); |
53118-31G03-291 |
— | ||
|
1
|
1
53118-31G04-291
Grille,front
Grille, front (black); |
53118-31G04-291 |
— | ||
|
2
|
2
68151-03G40-000 EMBLEM,SEmblem, "s"; |
68151-03G40-000 |
from US $10.08 |
||
|
3
|
3
09409-07333-000 CLIPClip, inner |
09409-07333-000 |
from US $1.22 |
||
|
3
|
3
09409-08335-000 CLIPClip, front; |
09409-08335-000 |
from US $1.91 |
||
|
4
|
4
53281-31G00-291
Housing, front rh (black)
Housing, front rh (black); E33 |
53281-31G00-291 |
— | ||
| replacements | |||||
|
4
|
4
53281-31G01-291 HOUSING,FR LAMP,RHousing, front rh (black); E33 |
53281-31G01-291 |
US $35 |
||
|
4
|
4
53281-31G02-291 HOUSING,FR LAMP, RHousing, front rh (black); E33 |
53281-31G02-291 |
US $35 |
||
|
4
|
4
53281-31G03-291 Cover,innerHousing, front rh (black); E33 |
53281-31G03-291 |
US $37.15 |
||
|
4
|
4
53281-31G10-291
HOUSING,FR LAMP,L
Housing, front rh (black); E28 |
53281-31G10-291 |
— | ||
| replacements | |||||
|
4
|
4
53281-31G01-291 HOUSING,FR LAMP,RHousing, front rh (black); E28 |
53281-31G01-291 |
US $35 |
||
|
4
|
4
53281-31G02-291 HOUSING,FR LAMP, RHousing, front rh (black); E28 |
53281-31G02-291 |
US $35 |
||
|
4
|
4
53281-31G03-291 Cover,innerHousing, front rh (black); E28 |
53281-31G03-291 |
US $37.15 |
||
|
5
|
5
53284-31G00-291
HOUSING,FR LAMP,L
Housing, front lh (black); E33 |
53284-31G00-291 |
— | ||
| replacements | |||||
|
5
|
5
53284-31G01-291
HOUSING,FR LAMP,L
Housing, front lh (black); E33 |
53284-31G01-291 |
— | ||
|
5
|
5
53284-31G02-291 HOUSING,FR LAMP,LHousing, front lh (black); E33 |
53284-31G02-291 |
US $35 |
||
|
5
|
5
53284-31G10-291
Housing, front lh (black)
Housing, front lh (black); E28 |
53284-31G10-291 |
— | ||
|
6
|
6
53282-31G00-291 COVER,FR LAMP,RCover, rh (black); |
53282-31G00-291 |
from US $9.52 |
||
| replacement | |||||
|
6
|
6
53282-31G01-291 COVER,FR LAMP,RCover, rh (black); |
53282-31G01-291 |
from US $18.11 |
||
|
7
|
7
53283-31G00-291
Cover, lh (black)
Cover, lh (black); |
53283-31G00-291 |
— | ||
| replacement | |||||
|
7
|
7
53283-31G01-291 COVER,FR LAMP,LCover, lh (black); |
53283-31G01-291 |
from US $18.46 |
||
|
8
|
8
09139-06118-000 SCREW(6X22.5) |
09139-06118-000 |
from US $5.20 |
||
|
9
|
9
09320-10501-000 CUSHIONCushion; |
09320-10501-000 |
from US $1.92 |
||
|
10
|
10
03242-05163-000
Screw
|
03242-05163-000 |
— | ||
| replacement | |||||
|
10
|
10
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
