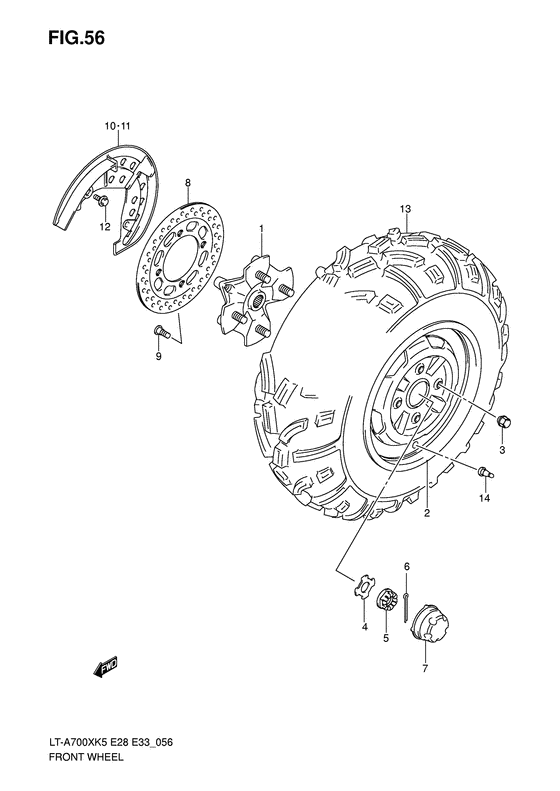

Front wheel Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54110-31G00-000 HUB,FR WHEEL |
54110-31G00-000 |
from US $91.68 |
||
|
2
|
2
55310-31G00-000
RIM,FR WHEEL(12X6.0AT)
Rim, front wheel (12x6.0at); |
55310-31G00-000 |
— | ||
|
3
|
3
09159-10045-000 NUT |
09159-10045-000 |
from US $9.62 |
||
|
4
|
4
64723-09F00-000 WASHER,HUB |
64723-09F00-000 |
from US $6.51 |
||
|
5
|
5
09141-18010-000 NUTNut, hub; |
09141-18010-000 |
from US $13.63 |
||
|
6
|
6
04111-40408-000
Pin, cotter
Pin, cotter; |
04111-40408-000 |
— | ||
| replacement | |||||
|
6
|
6
04111-4040A-000 PINPin, cotter; |
04111-4040A-000 |
from US $0.80 |
||
|
7
|
7
54725-09F01-000 CAP,WHEEL CTR |
54725-09F01-000 |
US $13.43 |
||
|
8
|
8
59211-31G00-000
Disc, front brake
|
59211-31G00-000 |
— | ||
| replacement | |||||
|
8
|
8
59211-31G10-000 DISC,FR BRAKE |
59211-31G10-000 |
from US $72.13 |
||
|
9
|
9
09106-08160-000 BOLT(8X21)Bolt, brake disc Bolt, brake disc; |
09106-08160-000 |
from US $1.67 |
||
|
10
|
10
59231-31G00-000
COVER,FR DISC,R
Cover, front disc, r; |
59231-31G00-000 |
— | ||
| replacement | |||||
|
10
|
10
59231-31G10-000 COVER,FR DISC,RCover, front disc, r; |
59231-31G10-000 |
US $23.61 |
||
|
11
|
11
59431-31G00-000
COVER,FR DISC,L
Cover, front disc, l; |
59431-31G00-000 |
— | ||
| replacement | |||||
|
11
|
11
59431-31G10-000 COVER,FR DISC,LCover, front disc, l; |
59431-31G10-000 |
US $23.17 |
||
|
12
|
12
09111-06085-000 BOLT(6X12) |
09111-06085-000 |
from US $2.40 |
||
|
13
|
13
55110-31G00-000
Tire, front (at25x8-12) (dunlo
Tire, front (at25x8-12) (dunlop); |
55110-31G00-000 |
— | ||
| replacement | |||||
|
13
|
13
55110-31G20-000 TIRE,FRTire, front (at25x8-12) (dunlop); |
55110-31G20-000 |
from US $240.78 |
||
|
14
|
14
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) Valve assy, wheel rim (tr412); |
43130-24A00-000 |
from US $4.41 |
||
