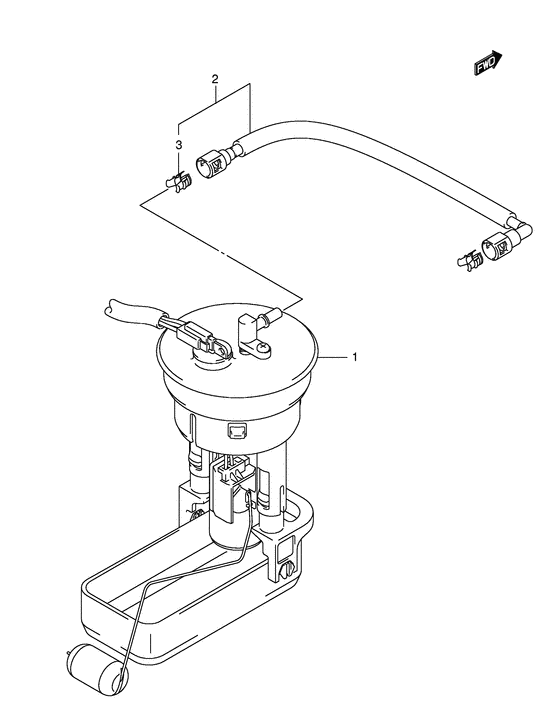

Fuel Pump Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-31G00-000
Pump assy, fuel
|
15100-31G00-000 |
— | ||
| replacements | |||||
|
1
|
1
15100-31G03-000
PUMP ASSY,FUEL
|
15100-31G03-000 |
— | ||
|
1
|
1
15100-31G04-000 Pump Assy,fuel |
15100-31G04-000 |
from US $538.56 |
||
|
2
|
2
15810-31G00-000
Hose, fuel
|
15810-31G00-000 |
— | ||
| replacements | |||||
|
2
|
2
15810-31G02-000
HOSE,FUEL
|
15810-31G02-000 |
— | ||
|
2
|
2
15810-31G03-000 Hose Comp,fuel |
15810-31G03-000 |
from US $49.66 |
||
|
3
|
3
15815-35F00-000 RETAINER |
15815-35F00-000 |
from US $3.04 |
||
