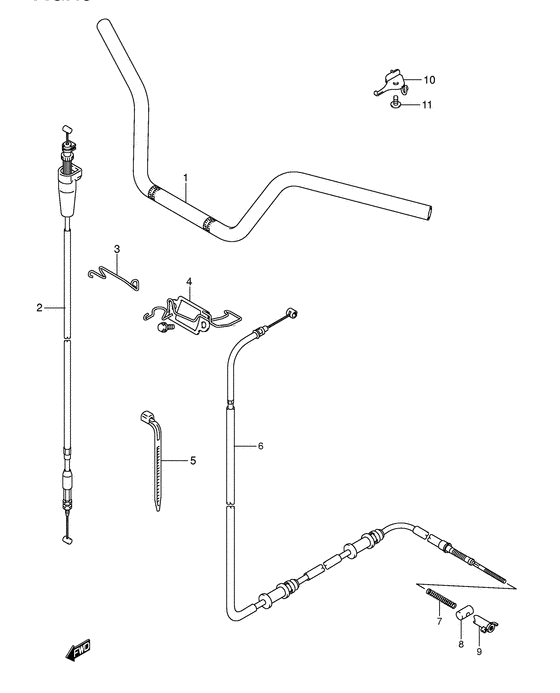

Handle bar Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-31G00-000
Handle bar
|
56111-31G00-000 |
— | ||
| replacement | |||||
|
1
|
1
56111-31G30-000 HANDLEBAR |
56111-31G30-000 |
US $104.82 |
||
|
2
|
2
58300-31G00-000 Cable assy,throttle |
58300-31G00-000 |
from US $29.62 |
||
|
3
|
3
58626-31G00-000 GUIDE,THROTTLE CABLE |
58626-31G00-000 |
from US $7.95 |
||
|
4
|
4
58620-31G00-000 GUIDE,CABLE |
58620-31G00-000 |
US $32.44 |
||
|
5
|
5
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $0.77 |
||
|
6
|
6
58810-31G00-000 CABLE,PARKING BRAKE |
58810-31G00-000 |
US $90.58 |
||
|
7
|
7
09440-08042-000 SPRING |
09440-08042-000 |
from US $2.27 |
||
|
8
|
8
09209-13006-000 PINPin, adjuster Pin; |
09209-13006-000 |
from US $1.92 |
||
|
9
|
9
09150-06015-000 NUT |
09150-06015-000 |
US $5.70 |
||
|
10
|
10
58620-31G10-000 GUIDE,PARKING CABLE |
58620-31G10-000 |
US $21.32 |
||
|
11
|
11
03542-06163-000
Screw
|
03542-06163-000 |
— | ||
| replacement | |||||
|
11
|
11
03541-0616A-000 SCREW |
03541-0616A-000 |
from US $0.64 |
||
