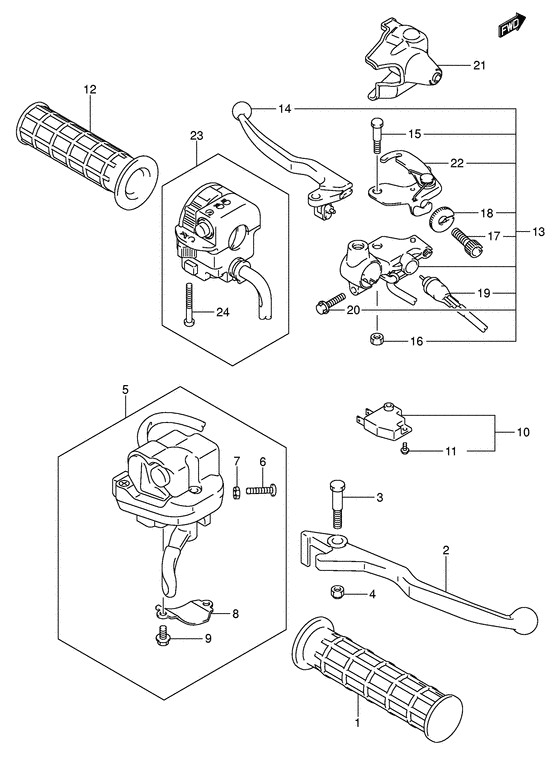

Handle lever Diagram Suzuki LT-A700 KingQuad 700
- Model code
- LT-A700 K5
- Engine Capacity
- 695
- Year
- 2005
- Sales region
- Canada/California (E28/E33)
- Frame
- JSAAP41A*52100001~
- Power
- 49 hp
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-21G00-000
Grip
|
57211-21G00-000 |
— | ||
| replacement | |||||
|
1
|
1
57211-21G10-000 GRIP |
57211-21G10-000 |
from US $13.70 |
||
|
2
|
2
57421-39D20-000 LEVER,FR BRAKELever, brake |
57421-39D20-000 |
US $31.14 |
||
|
3
|
3
57431-04F00-000 BOLT,BRAKE LEVER PIVOT |
57431-04F00-000 |
from US $2.11 |
||
|
4
|
4
57433-09F00-000 NUT,LEVER PIVOT |
57433-09F00-000 |
from US $1.76 |
||
|
5
|
5
57100-31G00-000
Case assy, throttle
|
57100-31G00-000 |
— | ||
| replacement | |||||
|
5
|
5
57100-31G01-000 CASE ASSY,THROTTLE |
57100-31G01-000 |
US $298.03 |
||
|
6
|
6
02112-05203-000
Screw
|
02112-05203-000 |
— | ||
| replacement | |||||
|
6
|
6
02112-0520B-000 SCREW |
02112-0520B-000 |
from US $0.80 |
||
|
7
|
7
08310-00053-000
Nut
Nut; |
08310-00053-000 |
— | ||
| replacement | |||||
|
7
|
7
08310-0005A-000 NUTNut; |
08310-0005A-000 |
from US $0.96 |
||
|
8
|
8
57126-07G00-000 HOLDER |
57126-07G00-000 |
from US $14.24 |
||
|
9
|
9
57127-07G00-000 Bolt |
57127-07G00-000 |
from US $5.81 |
||
|
10
|
10
57460-17C11-000
Switch assy, stop
Switch assy, stop; |
57460-17C11-000 |
— | ||
| replacements | |||||
|
10
|
10
57460-14J01-000
SWITCH ASSY,FR BRAKE
Switch assy, stop; |
57460-14J01-000 |
— | ||
|
10
|
10
57460-14J02-000 Switch Assy,stopSwitch assy, stop; |
57460-14J02-000 |
from US $31.82 |
||
|
11
|
11
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
12
|
12
57211-21G00-000
Grip
|
57211-21G00-000 |
— | ||
| replacement | |||||
|
12
|
12
57211-21G10-000 GRIP |
57211-21G10-000 |
from US $13.70 |
||
|
13
|
13
57500-38FC0-000
LEVER ASSY,RR BRAKE
|
57500-38FC0-000 |
— | ||
| replacement | |||||
|
13
|
13
57500-38FC1-000 Lever Assy,rr Brake |
57500-38FC1-000 |
from US $102.46 |
||
|
14
|
14
57620-21821-000 LEVER SET,CLUTCHLever, clutch Lever set, brake; |
57620-21821-000 |
from US $40.48 |
||
|
15
|
15
57431-09F00-000 BOLT,PIVOTBolt, pivot; |
57431-09F00-000 |
US $17.41 |
||
|
16
|
16
08319-21063-000
Nut
|
08319-21063-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
17
|
17
57441-08C00-000
ADJUSTER,WIRE
Adjuster, cable; |
57441-08C00-000 |
— | ||
| replacement | |||||
|
17
|
17
57441-08C01-000 Adjuster,wireAdjuster, cable; |
57441-08C01-000 |
from US $6.02 |
||
|
18
|
18
57442-08C00-000
NUT,LOCK
|
57442-08C00-000 |
— | ||
| replacement | |||||
|
18
|
18
57442-08C01-000 Nut,lock |
57442-08C01-000 |
from US $6.66 |
||
|
19
|
19
57560-38FA1-000 SWITCH ASSY,STOP |
57560-38FA1-000 |
US $78.73 |
||
|
20
|
20
01547-06203-000
Bolt (6x20)
|
01547-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01547-0620B-000 Bolt |
01547-0620B-000 |
from US $0.76 |
||
|
21
|
21
57541-38FA0-000 COVER,RR BRAKE LEVERCover, lever Cover, brake lever; |
57541-38FA0-000 |
from US $6.40 |
||
|
22
|
22
57790-38FA0-000 STOPPER,BRAKE LEVER |
57790-38FA0-000 |
from US $22.26 |
||
|
23
|
23
37400-31G00-000 SWITCH ASSY,HANDLE,LSwitch assy, lh; |
37400-31G00-000 |
US $191.69 |
||
|
24
|
24
02112-05353-000
Screw
|
02112-05353-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-0535B-000 SCREW |
02112-0535B-000 |
from US $0.80 |
||
